Special Clutch Cover Kit TYPE-R (17-DRY/Hydraulic) No Master Cylinder Monkey Gorilla

【SP武川 02-02-0033 Special Clutch Cover Kit TYPE-R (17DRY/Hydraulic) No Master Cylinder for Monkey Gorilla Engine Parts Takegawa】
■Product Description
Installation of this product requires simultaneous installation of the Special Clutch Inner Kit TYPE-R (DRY).
Master cylinder is not included.
●Applicable Special Clutch Inner Kit TYPE-R (DRY)
Part numbers 02-02-0176, 02-02-0177

■Detailed Description
●Universal Right Crankcase Cover
The right crankcase cover is made of die-cast aluminum.
The cover surface is silver painted.
The right crankcase cover is designed to be used with both wet and dry clutches.
Even after purchasing a dry clutch, you can change the specification to a special (wet) clutch.
*Specification change requires separate purchase of parts specified by SP Takegawa.
●Aluminum Billet Clutch Cover (Hydraulic)
The cover is made of aluminum billet with a clear anodized finish.
It features a new shape for the bleeder valve and hose fitting mounting sections, and multiple ventilation holes to enhance cooling performance.
Furthermore, to improve clutch operation, the release piston diameter has been enlarged from the conventional φ29.5 to φ33, making the clutch lever operation lighter.
Optional part: A soundproof rubber cap that reduces the noise unique to dry clutches can be installed.
●Built-in Oil Element
Filters impurities such as sludge and metal wear particles in the oil.
By removing impurities from the oil, engine output can be maintained.
The oil element uses a reliable cartridge-type paper filter.
●With Oil Level Confirmation Window
Allows checking of the oil level.
Durable glass is used for the engine oil confirmation window.
●Large Oil Filler Cap
Made of die-cast aluminum with chrome plating.
The enlarged filler opening makes oil changes easy.

■Compatible Models
HONDA
6V Monkey/Gorilla (Z50J-1300017 to 1805927)
12V Monkey (Z50J-2000001~/AB27-1000001~1899999)
12V Gorilla (Z50J-2500001~/AB27-1000001~1899999)
Monkey (FI) (AB27-1900001~)

■Notes

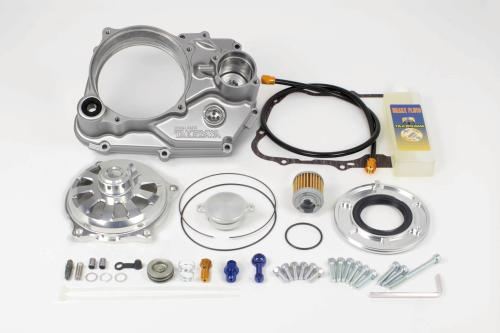

*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*Installation of this product requires simultaneous installation of the Special Clutch Inner Kit TYPE-R (DRY).
*Installation of the inner kit requires simultaneous installation of SP Takegawa's 5-speed/6-speed cross mission for dry clutches. Also, the part number for the cross mission kit differs between carbureted and fuel-injected Monkey models.
*When installing on vehicles with Z50J-1300017 to 1600007, the included clutch cable is not compatible with the stock clutch holder, so please replace the handlebar pipe and purchase an SP Takegawa clutch lever and combination switch.
*Simultaneous installation of stock mufflers and up-type mufflers is not possible.
*The Special Clutch Cover Kit TYPE-R (17DRY/Hydraulic) does not include a clutch master cylinder.
