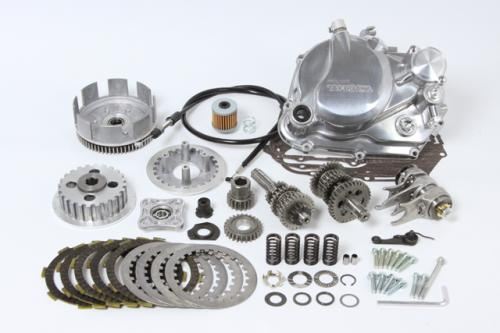

Special Clutch & Mission Kit, Standard Clutch, Monkey Gorilla

【SP Takegawa 02-03-0173 Special Clutch & Mission Kit, Standard Clutch, Monkey, Gorilla, Engine Parts, Takegawa】
■Product Description
This Special Clutch Kit (standard clutch specification) combined with a Super Sports 5-speed cross transmission is now available at a new, affordable price.
Included Super Sports 5-speed cross transmission: Street 5-speed
A clutch lever must be purchased separately.

■Detailed Description
●Aluminum Die-Cast Clutch Cover (Buffed and Clear Coated)
Patented Structure: Thermostat mounting section and oil line structure
The clutch cover is made of aluminum die-cast.
The surface finish is buffed and clear coated.
Oil can be routed to an oil cooler.
An optional thermostat unit using shape memory alloy springs can be installed. This prevents overcooling.
The thermostat unit is sold separately.
A highly reliable cartridge-type paper oil element is used.
Durable glass is used for the engine oil inspection window.
An integrated clutch cable receiver is adopted.

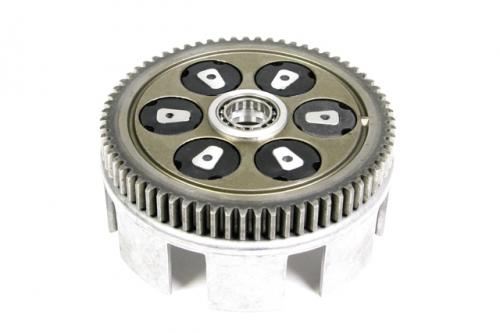

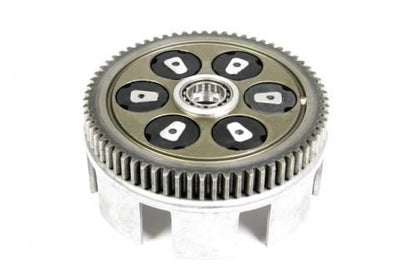

●Standard Clutch (for SP Takegawa 4/5/6-speed cross transmissions)
With a normal clutch, the clutch body is mounted on the normal crankshaft, but the SP Takegawa Special Clutch uses a secondary clutch that is mounted on the main shaft of the transmission.
This reduces the load on the crankshaft. It also allows for a lighter crankshaft, resulting in a lighter throttle response.
Dampers are incorporated into the primary driven gear to reduce shock during clutch engagement.
The number of friction discs is increased to 5, making it compatible with high-power engines for both street and race use.
A highly durable and strong aluminum die-cast lifter plate is used.

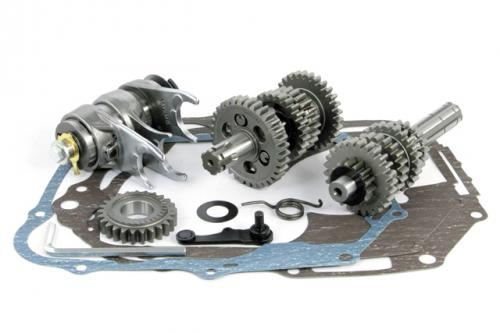

●Super Sports Cross Transmission (Street 5-speed) included
The Super Sports 5-speed cross transmission allows for effective use of the power band without stress.
Even if the engine output is increased, a normal transmission cannot utilize the power band effectively, preventing the engine's potential from being fully realized.
By installing this SS 5-speed cross transmission, the power band can be used without stress for street driving, cornering, and racing, maximizing the potential of a custom engine.
●12V Monkey (Normal Transmission)
1st: 3.272 2nd: 1.937 3rd: 1.350 4th: 1.043
●Street 5-speed
1st: 2.357 2nd: 1.764 3rd: 1.400 4th: 1.136 5th: 0.958

■Compatible Models
HONDA
6V Monkey/Gorilla (Z50J-1300017 to 1805927)
12V Monkey (Z50J-2000001 to /AB27-1000001 to 1899999)
12V Gorilla (Z50J-2500001 to /AB27-1000001 to 1899999)

■Notes
※Images are for illustration purposes only. They may include products of different sizes or colors.
※Product design and specifications are subject to change without notice. Please understand.
※When installing on Z50J-1300017 to 1805927 vehicles, a B-type kick starter spindle (02-04-0011) is required.
※When installing on Z50J-1300017 to 1600007 vehicles, the included clutch cable cannot be attached to the normal clutch holder (the type welded to the handlebar pipe), so replace the handlebar pipe and use an SP Takegawa clutch lever or a combination switch with a clutch lever.
※This product is made to order, so cancellations after ordering are not possible.
※As this is a made-to-order product, it will take some time for delivery. Also, please note that the manufacturer may discontinue the product or change specifications without notice. Thank you for your understanding.
