Special Clutch & Mission Kit, Standard Clutch, Monkey Gorilla

[SP Takegawa 02-03-0179 Special Clutch & Mission Kit Standard Clutch Monkey Gorilla Engine Parts Takegawa]
■Product Description

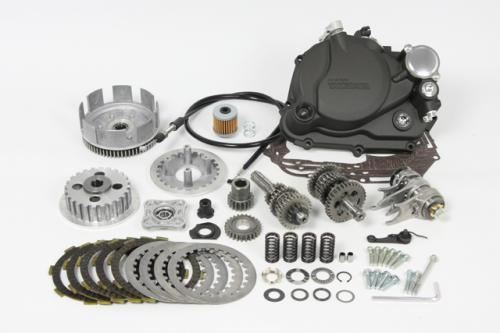

This special clutch kit (standard clutch specification) comes with a Super Sport 5-speed cross transmission, now at a new, more affordable price.
Included Super Sport 5-speed cross mission: Street 5-speed
A clutch lever must be purchased separately.

■Detailed Description
●Aluminum Die-Cast Clutch Cover (Black Painted)
Patented structure: Thermostat mounting part and oil line structure
The clutch cover is made of aluminum die-cast.
The surface is finished with black paint.

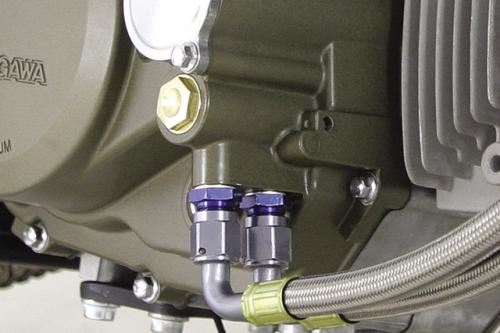

Oil can be extracted to the oil cooler.
An optional thermostat unit using shape memory alloy springs can be installed. This prevents overcooling.
The thermostat unit is sold separately.
A reliable cartridge-type paper oil element is used.
Durable glass is used for the engine oil inspection window.
A clutch cable receiver integrated with the cover is adopted.
●Standard Clutch (for SP Takegawa 4/5/6 speed cross missions)
In the case of a normal clutch, the clutch body is mounted on the normal crankshaft, but the SP Takegawa special clutch adopts a secondary clutch mounted on the main shaft on the mission side.
This reduces the burden on the crankshaft. It also makes it possible to lighten the crankshaft, resulting in a lighter throttle response.

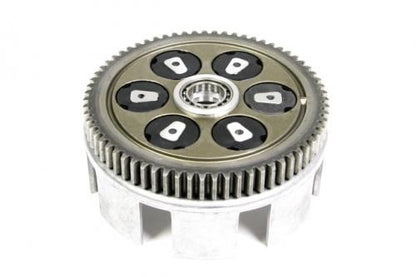

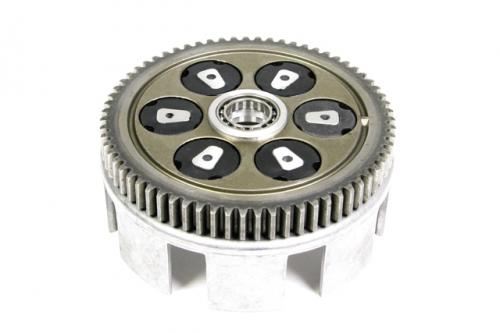

Dampers are incorporated into the primary driven gear to reduce shock when the clutch is engaged.
With 5 friction discs, it is compatible with high-power engines for both street and racing.
A highly durable and strong aluminum die-cast lifter plate is adopted.

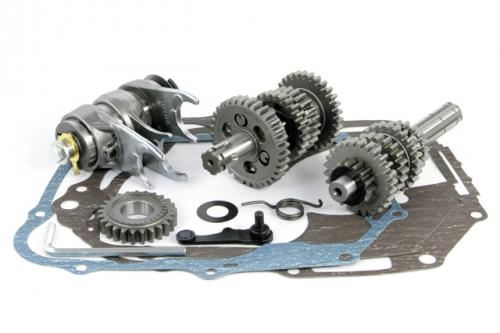

●Super Sport Cross Mission (Street 5-speed) Included
The Super Sport 5-speed cross mission allows effective use of the power band without stress.
Even if the engine output is increased, a normal mission cannot utilize the power band, preventing the engine's potential from being unleashed.
By installing this SS 5-speed cross mission, the power band can be used without stress during street driving, cornering, and racing, maximizing the potential of the custom engine.
●12V Monkey (Normal Mission)
1st: 3.272 2nd: 1.937 3rd: 1.350 4th: 1.043
●Street 5-speed
1st: 2.357 2nd: 1.764 3rd: 1.400 4th: 1.136 5th: 0.958

■Compatible Models
HONDA
6V Monkey/Gorilla (Z50J-1300017～1805927)
12V Monkey (Z50J-2000001～/AB27-1000001～1899999)
12V Gorilla (Z50J-2500001～/AB27-1000001～1899999)

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*When installing on vehicles with Z50J-1300017～1805927, a Type B kick starter spindle (02-04-0011) is required.
*When installing on vehicles with Z50J-1300017～1600007, the included clutch cable cannot be attached to the normal clutch holder (the type welded to the handlebar pipe), so you must replace the handlebar pipe and use an SP Takegawa clutch lever or a combination switch with a clutch lever.
*As this product is made to order, cancellations after placing an order are not possible.
*This product is made to order, so it will take some time for delivery. Also, please note that the manufacturer may discontinue the product or change its specifications without prior notice. Thank you for your understanding.
