Special Clutch TYPE-R (DRY/Wire) & TAF 5-Speed Transmission Kit for Monkey/Gorilla

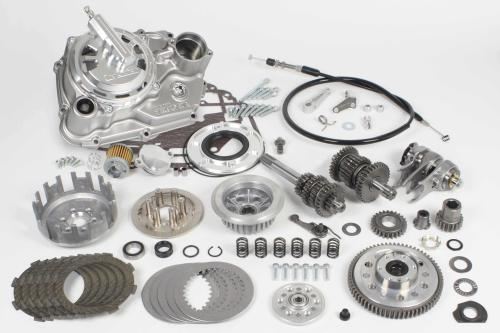

[SP Takegawa 02-03-0202 Special Clutch TYPE-R (DRY/Wire) & TAF 5-Speed Transmission Kit Monkey Gorilla Engine Parts Takegawa]
■Product Description
This product is a great value set that includes the Special Clutch TYPE-R (DRY/Wire) and the TAF 5-Speed Close Ratio Transmission Kit.
●Product Configuration
Special Clutch TYPE-R (DRY/Wire) (without slipper clutch mechanism)
*No slipper clutch mechanism.
TAF 5-speed close ratio transmission kit (S-Touring 5-speed)

■Detailed Description
●Compatible right crankcase cover
The right crankcase cover is made of die-cast aluminum.
The cover surface is painted silver.
The right crankcase cover is designed to be used with both wet and dry clutches.
Even after purchasing a dry clutch, you can switch to a special clutch (wet type).
*Specification changes require separate purchase of SP Takegawa specified parts.
●Billet aluminum clutch cover (wire type)
The cover is made of billet aluminum with a clear anodized finish.
A rack and pinion system is adopted for light and smooth operation.
Ventilation holes are arranged to enhance cooling effect.
For those who are concerned about the unique noise of dry clutches, noise can be reduced by using the optional rubber cap.
●Built-in oil element
Filters impurities such as sludge and metal wear particles in the oil.
By removing impurities in the oil, engine output can be maintained.
The oil element uses a reliable cartridge-type paper filter.
●With oil level check window
Allows you to check the oil level.
Durable glass is used for the engine oil check window.
●Large oil filler cap
Made of die-cast aluminum with a chrome-plated finish.
The enlarged oil filler port makes oil changes easy.
●Clutch unit change
By changing from the normal crankshaft (primary side) to the main shaft of the transmission (secondary side), the load on the crankshaft is reduced, and the weight of the crankshaft axis can be reduced, resulting in light throttle response.
●6-disc specification
Compared to conventional products, downsizing has been achieved, reducing the rotational mass by approximately 12%. Six friction discs are used to achieve a 6-disc configuration.
This increases the clutch capacity by approximately 20% compared to conventional products, making it compatible with high-power engines.
●Standard clutch specification (without slipper clutch)
●Primary driven gear
Built-in rubber damper to reduce shock to gears when the clutch is engaged.
●Lifter plate
The standard specification uses a billet aluminum lifter plate.
●Clutch spring
Excellent fatigue resistance and stable clutch feel.
●TAF 5-speed close ratio transmission kit (S-Touring 5-speed)
A close ratio transmission that allows effective use of the power band.
●TAF 5-speed close ratio transmission kit (return type)
While retaining the advantages of SP Takegawa's existing 5-speed close ratio transmission, durability and operability have been further improved.
By adopting shift forks with special surface treatment and ensuring tooth width in line with the shorter stroke, durability has been improved.
In addition, the gears (dog section) adopt the same tapered shape at the engaging part as conventional products, improving shift feeling and preventing malfunctions such as gear slippage.
R. crankcase cover gasket and crankcase gasket, which are necessary for assembly, are included.
●S-Touring 5-speed
1st: 2.357 2nd: 1.611 3rd: 1.190 4th: 0.958 5th: 0.807

■Compatible Models
HONDA
6V Monkey/Gorilla (Z50J-1300017 ～1805927)
12V Monkey (Z50J-2000001～/AB27-1000001～1899999)
12V Gorilla (Z50J-2500001～/AB27-1000001～1899999)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*Normal mufflers and up-type mufflers cannot be installed simultaneously.
*As this product is made to order, cancellations after ordering are not possible.
*As this product is made to order, delivery may take some time. Also, please note that the manufacturer may discontinue the product or change specifications without notice. Thank you for your understanding.
