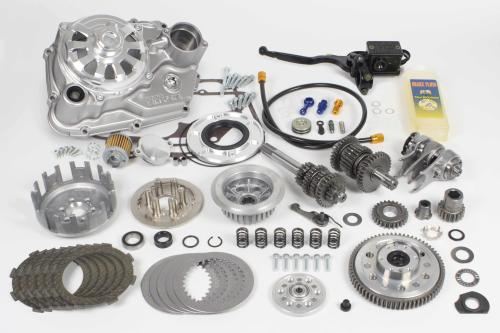

Special Clutch Type-R (Dry/Hydraulic) & TAF 5-Speed Transmission Kit for Monkey (FI)

【SP武川 02-03-0208 Special Clutch TYPE-R (DRY/Hydraulic) & TAF 5-Speed Mission Kit for Monkey (FI) Engine Parts Takegawa】
■Product Description
This product is a great value set that includes the Special Clutch TYPE-R (DRY/Hydraulic) and the TAF 5-speed cross mission kit.
●Product Configuration
Special Clutch TYPE-R (DRY/Hydraulic) (without slipper clutch mechanism)
*No slipper clutch mechanism. Master cylinder included.
TAF 5-speed cross mission kit (Super Street 5-speed)

■Detailed Description
●Shared Right Crankcase Cover
The right crankcase cover is made of die-cast aluminum.
The cover surface is silver painted.
The right crankcase cover is designed to be used with both wet and dry clutches.
Even after purchasing a dry clutch, you can change it to a special clutch (wet type).
*Specification changes require separate purchase of parts specified by SP Takegawa.
●Aluminum Billet Clutch Cover (Hydraulic)
The cover is made of aluminum billet with a clear anodized finish.
A new shape is adopted for the bleeder valve and hose fitting mounting sections, and multiple ventilation holes are arranged to enhance cooling effect.
Furthermore, to improve clutch operation, the release piston diameter has been enlarged from the conventional φ29.5 to φ33, making the clutch lever operation lighter.
Optional parts: A soundproof rubber cap to reduce the unique noise of dry clutches can be installed.
●Built-in Oil Element
Filters impurities such as sludge and metal wear particles in the oil.
By removing impurities in the oil, engine output can be maintained.
The oil element uses a reliable, cartridge-type paper filter.
●With Oil Level Check Window
Allows checking of oil quantity.
Durable glass is used for the engine oil check window.
●Large Oil Filler Cap
Made of die-cast aluminum with a chrome-plated finish.
The enlarged oil filler port makes oil changes easier.
●Clutch Unit Change
By changing the drive from the normal crankshaft (primary side) to the mission main shaft (secondary side), the load on the crankshaft is reduced, and the weight of the crankshaft axis can be reduced, resulting in lighter throttle response.
●6-Disc Specification
Compared to conventional products, the size has been downsized, and the rotating mass weight has been reduced by approximately 12%. Six friction discs are used to achieve a 6-disc configuration.
This increases the clutch capacity by approximately 20% compared to conventional products, making it suitable for high-power engines.
●Standard Clutch Specification (without slipper clutch)
●Primary Driven Gear
Built-in rubber damper to reduce shock to gears when the clutch is engaged.
●Lifter Plate
The standard specification uses an aluminum billet lifter plate.
●Clutch Spring
Excellent fatigue resistance, achieving stable clutch feel.
●TAF 5-speed cross mission kit (Super Street 5-speed)
A cross mission that effectively utilizes the power band.
●TAF 5-speed cross mission kit (return type)
While retaining the advantages of SP Takegawa's existing 5-speed cross mission, durability and operability have been further improved.
By adopting a shift fork with special surface treatment and ensuring the tooth width for a shorter stroke, durability has been improved.
In addition, the gear (dog part) adopts the same tapered shape for the engagement part as conventional products, improving shift feeling and preventing malfunctions such as gear slippage.
R. crankcase cover gasket and crankcase gasket, which are necessary for assembly, are included.
●Super Street 5-speed
1st gear: 2.357, 2nd gear: 1.764, 3rd gear: 1.400, 4th gear: 1.136, 5th gear: 1.000

■Compatible Models
HONDA
Monkey (FI) (AB27-1900001～)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications may change without prior notice. Please understand.
*Normal mufflers and up-type mufflers cannot be installed simultaneously.
*Since this product is made to order, cancellations after placing an order are not possible.
*This is a made-to-order product, so delivery may take some time. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
