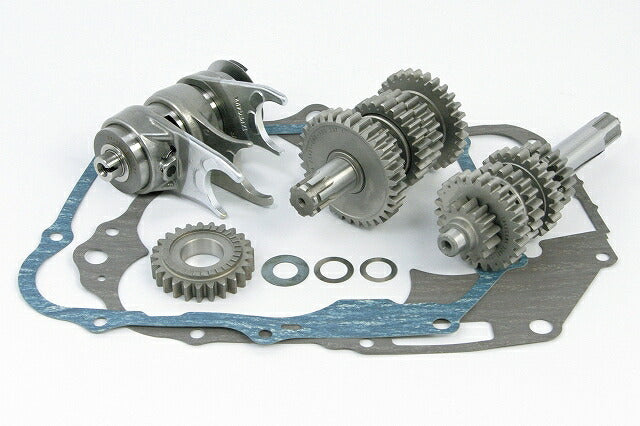

TAF 5-Speed Cross Mission Kit (S-Touring) for Monkey (FI)/Dry Clutch

The "TAF 5-speed cross transmission kit" further improves the durability and operability of the existing Takegawa 5-speed cross transmission. It uses shift forks with special surface treatment and ensures tooth width in conjunction with a shorter stroke, thereby improving durability.
Additionally, the gears feature the same tapered engagement section as the SS 5-speed, improving shifting feel and enhancing protection against malfunctions such as gear slippage.
There are two types: one for normal clutches, Takegawa reinforced clutches, and special clutches (5-disc), and one for dry clutches.
If you have a centrifugal clutch, please purchase a manual clutch kit before selecting this kit.
Shift pattern: Return type
R. crankcase cover gasket and crankcase gasket, which are required for mission assembly, are included.
The SS 5-speed cross transmission kit for Monkey/Gorilla (carburetor models) includes two types of crankcase gaskets: one for 6V and one for 12V.
*6V Monkey/Gorilla (Z50J-1300017-1805927) are A-type spindle vehicles, so it is necessary to change to a B-type spindle.
B-type kickstarter spindle kit (02-04-0011)
*If you are using an old special clutch kit (3-disc/4-disc type), you will need to purchase a separate main shaft (00-02-0084).
Compatible Clutch / Dry Clutch
Mission Type / S Touring 5-speed
Gear Ratio / 1st: 2.357 2nd: 1.611 3rd: 1.190 4th: 0.958 5th: 0.807
Compatible models
: Monkey (FI) (AB27-1900001~)
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
