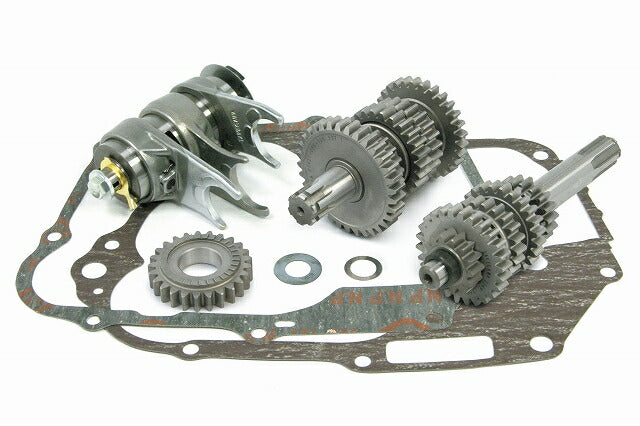

TAF5-speed Cross Mission Kit (S-Touring) Complete Engine (Secondary/Dry)

The TAF 5-speed close-ratio transmission kit maintains the excellent features of the existing Takegawa 5-speed close-ratio transmission, while further improving durability and operability. By adopting a shift fork with a special surface treatment and ensuring tooth width to accommodate a shorter stroke, durability has been improved.
In addition, the gears use a tapered shape at the engagement points, similar to the SS 5-speed, improving shift feel and enhancing the prevention of malfunctions such as gear slippage.
There are two types: one for normal clutches, Takegawa reinforced clutches, and special clutches (5-disc), and one for dry clutches.
If you have an automatic clutch, please purchase a manual clutch kit first, then choose this kit.
Shift pattern: Return type
R. crankcase cover gasket and crankcase gasket, which are necessary when installing the transmission, are included.
The SS 5-speed close-ratio transmission kit for Monkey/Gorilla (carbureted models) includes two types of crankcase gaskets: one for 6V and one for 12V.
*6V Monkey/Gorilla (Z50J-1300017 to 1805927) are Type A spindle vehicles, so it is necessary to change to a Type B spindle.
Type B Kick Starter Spindle Kit (02-04-0011)
*If you are using the old special clutch kit (3-disc/4-disc type), you will need to purchase a separate main shaft (00-02-0084).
Compatible clutch: Dry clutch
Transmission type: S Touring 5-speed
Gear ratio: 1st: 2.357, 2nd: 1.611, 3rd: 1.190, 4th: 0.958, 5th: 0.807
Compatible models
: 12V Monkey, Gorilla, Monkey BAJA
*For Takegawa reinforced crankcase (secondary kick starter arm)
*The image is for illustration purposes only, and the design and specifications of the products shown may change without notice. Please understand.
