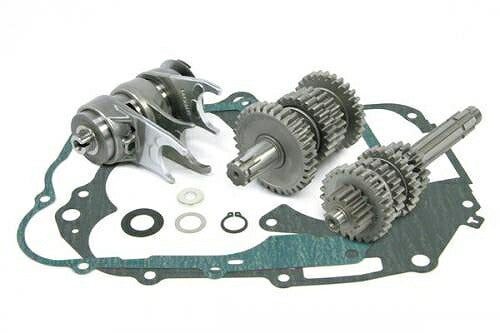

TAF5-speed Cross Transmission Kit (Super Street) Complete Engine (Primary/Wet)

The "TAF 5-speed close ratio transmission kit" further improves the durability and operability of Takegawa's existing 5-speed close ratio transmission, while retaining its excellent features.
By adopting a shift fork with a special surface treatment and ensuring tooth width in accordance with a shorter stroke, we have achieved improved durability.
Additionally, the gears feature the same tapered engagement section as conventional products, improving shift feel and enhancing the prevention of malfunctions such as gear slippage.
R. crankcase cover gasket and crankcase gasket, which are required when installing the transmission kit, are included.
Can be installed with both reinforced clutches and normal clutches.
Applicable engines
Can be installed on 1P52FMI-2B10, 1P54FMI-2B10, 1P54FMI-2E10, etc., and other engines of the same series. However, since there are various derivative models of these engines, please check the specifications of your engine before purchasing.
Takegawa has only confirmed installation on 1P52FMI-2B10, 1P54FMI-2B10, and 1P54FMI-2E10.
For other engines, please proceed at your own risk.
Furthermore, Takegawa cannot answer questions regarding specifications and details of LIFAN engines other than those listed.
Please be aware of this in advance.
Transmission type / Super Street 5-speed
Shift pattern / Return type
Gear ratio / 1st: 2.357 2nd: 1.764 3rd: 1.400 4th: 1.136 5th: 1.000
Compatible models
: LIFAN engines (1P52FMI-2B10・1P54FMI-2B10・1P54FMI-2E10 etc...)
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
