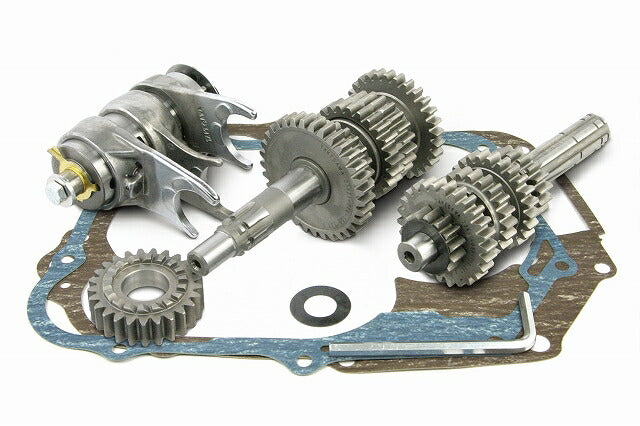

TAF 5-Speed Close Ratio Transmission Kit (S-Touring) Jazz

"TAF 5-speed close ratio transmission kit" that further improves durability and operability while maintaining the advantages of the existing TAKEGAWA 5-speed close ratio transmission.
By adopting a shift fork with a special surface treatment and ensuring tooth width in accordance with the shorter stroke, it was possible to improve durability.
In addition, the gears adopt the same tapered shape at the meshing part as conventional products, improving shift feeling and enhancing the effect of preventing malfunctions such as gear slippage.
R. crankcase cover gasket and crankcase gasket, which are necessary when installing the mission kit, are included.
Can be installed with reinforced clutches or normal clutches.
Transmission type / S-touring 5-speed
Shift pattern / Return type
Gear ratio / 1st: 2.357 2nd: 1.611 3rd: 1.190 4th: 0.958 5th: 0.807
Compatible models
: JAZZ (AC09-1017201~) B type spindle vehicle
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
