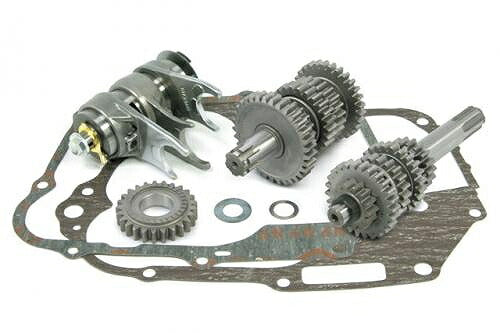

TAF 5-speed Cross Transmission Kit (Super Street) Complete Engine (Dry Clutch) 124cc/138cc

The TAF 5-Speed Cross Transmission Kit further improves the durability and operability of the existing Takegawa 5-speed cross transmission. It uses a shift fork with a special surface treatment and ensures tooth width in line with the shortened stroke, thereby improving durability.
Additionally, the gears feature the same tapered shape at the engagement points as the SS 5-speed, enhancing shift feel and preventing malfunctions such as gear slippage.
There are two types available: one for normal clutches, Takegawa reinforced clutches, and special clutches (5-disc), and one for dry clutches.
For centrifugal clutches, please purchase a manual clutch kit before selecting this kit.
Shift pattern: Return type
Includes the R. crankcase cover gasket and crankcase gasket necessary for transmission assembly.
The SS 5-speed cross transmission kit for Monkey/Gorilla (carburetor models) includes two types of crankcase gaskets: one for 6V and one for 12V.
*6V Monkey/Gorilla (Z50J-1300017 to 1805927) are Type A spindle vehicles, so a conversion to a Type B spindle is required.
Type B Kickstarter Spindle Kit (02-04-0011)
*If you are using an old special clutch kit (3-disc/4-disc type), you will need to purchase a separate main shaft (00-02-0084).
Applicable Clutch / Dry Clutch
Transmission Type / Super Street 5-Speed
Gear Ratio / 1st: 2.357, 2nd: 1.764, 3rd: 1.400, 4th: 1.136, 5th: 1.000
Compatible Models
: 12V Monkey/Gorilla/Monkey BAJA
*For Takegawa reinforced crankcases (secondary kickstarter arm)
*Images are for illustration purposes only. The design and specifications of the products shown may change without notice. Please be aware.
