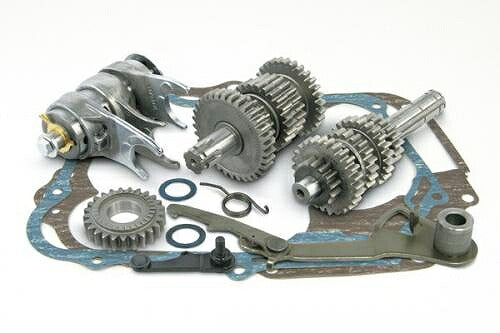

TAF 5-Speed Close-Ratio Transmission Kit (S-Touring) for Cub/Little Cub (FI)

The "TAF 5-speed close-ratio transmission kit" maintains the excellent qualities of the existing Takegawa 5-speed close-ratio transmission while further improving its durability and operability. By adopting shift forks with a special surface treatment and ensuring sufficient tooth width for a shorter stroke, durability has been enhanced.
In addition, the gears feature the same tapered engagement section as the SS 5-speed, improving shift feel and enhancing error prevention such as gear slippage.
The kit includes the R. crankcase cover gasket and crankcase gasket required for transmission kit installation.
This is a centrifugal 5-speed return transmission (1-down, 4-up).
It can be installed with a stock clutch.
When a Takegawa manual clutch kit is installed, by using parts other than the gear shift arm from this transmission kit, it becomes a manual 5-speed return type.
Compatible Clutches / Stock clutch, reinforced clutch
Transmission Type / S-Touring 5-speed
Shift Pattern / Return type
Gear Ratios / 1st: 2.357, 2nd: 1.611, 3rd: 1.190, 4th: 0.958, 5th: 0.807
Compatible Models
: Super Cub 50 (FI) (AA01-1700001～)
: Little Cub (FI) (AA01-4000001～)
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without prior notice. Thank you for your understanding.
