TAF 5-Speed Cross Transmission Conversion Kit for Special/Dry Clutch Type-R Equipped Vehicles GROM/MSX125/MSX125SF

Details:
・This conversion kit is necessary when installing a Takegawa Special Kit TYPE-R or Dry Clutch Kit TYPE-R on a vehicle equipped with a Takegawa TAF 5-speed cross mission kit (with standard clutch / Takegawa slipper clutch kit (02-01-0118)).

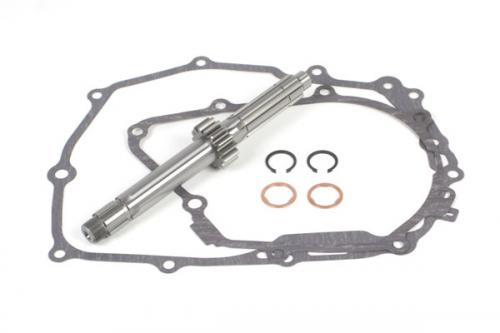

・It includes the L. crankcase cover gasket, R. crankcase cover gasket, two spline washers, and two external circlips, which are required when replacing the main shaft.
*Notes:
・This is exclusively for vehicles equipped with Takegawa Special/Dry Clutch TYPE-R.
・It cannot be installed on vehicles with a standard clutch or Takegawa slipper clutch kit (Part No. 02-01-0118).
・When performing mission replacement work, tools such as a GROM/MSX125 compatible flywheel puller (Part No. 00-01-1671), lock nut wrench (Part No. 00-01-1681), and rotor holder (Part No. 00-01-1001) will be required. Compatible models:
HONDA
・GROM/JC61-1000001～, JC61-1300001～
・MSX125/MLHJC618_D5000001～
・MSX125SF
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
