Air filter kit (for normal throttle body)

【Takegawa 03-01-0013 Air Filter Kit (for Normal Throttle Body) GROM MSX125 MSX125SF Motorcycle Custom TAKEGAWA】
■Product Description
An "air filter kit" that significantly improves intake efficiency, leading to improved output performance.

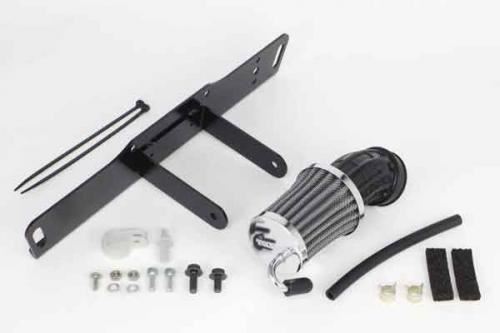

This product is an air filter kit that can be directly installed on the normal throttle body after removing the normal air cleaner box.
By installing it, the intake efficiency will be significantly improved, allowing for increased output in the high RPM range.
Based on test data, the kit includes a connecting tube specifically for the normal throttle body, which has been designed to the optimal length and position to not affect intake efficiency.
Since the air filter body has a blow-by union, it can be connected to the blow-by hose using the included union and hose.

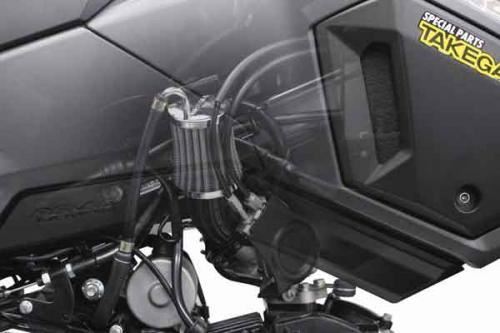

The air filter fits within the normal shroud, allowing installation without compromising the vehicle's silhouette.
The kit includes a shroud stay (black-painted steel).
When the normal air cleaner box is removed, the shroud fixing point is lost.
By using the included shroud stay, the shroud can be fixed.
The shroud stay can also be used to fix sensors attached to the normal air cleaner box and separately sold oil cooler kits.
By installing this product, an oil cooler kit can be installed in the position of the normal air cleaner box (inside the shroud).

【Additional parts required in combination with engine parts】
・Additional Part 1: Injection Controller
When installing simultaneously with various Takegawa engine parts, settings must be made with FI-CON TYPE-e or TYPE-X.

・Additional Part 2: Large Capacity Injector
Depending on the combination of various engine parts and the air filter kit, simultaneous installation of a large capacity injector may be required.

■Compatible Models
GROM (JC61-1000001〜1299999)
GROM (JC61-1300001〜)
GROM (JC75-1000001〜)
MSX125 (MLHJC618_D5000001〜)
MSX125 SF

■Notes
※Images are for illustration purposes only. Includes products with different sizes and colors.
※Product designs and specifications may change without prior notice. Please understand.
