KEIHIN PD22 Carburetor Kit High Flow CRF50F XR50R

【SP Takegawa 03-05-0004 KEIHIN PD22 Carburetor Kit High Flow CRF50F XR50R Engine Parts Takegawa】
■Product Description
This carburetor kit is optimized for SP Takegawa's R-Stage/R-Stage EM/R-Stage +D cylinder heads.

■Compatible Models
HONDA
CRF50F (AE03-1000001～)
XR50R (AE03-1400001～)

■Specifications
Type: High Flow
Intake Direction: Left Rear Intake
Compatible Engine: R-Stage / R-Stage EM / R-Stage +D

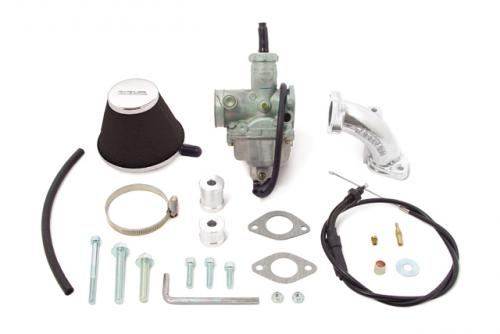

Accessories: Air filter (high flow), throttle cable included
Remarks: Uses stock throttle

■Precautions
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.
*Processing of the stopper part of the stock throttle pipe is required. As a result, the accelerator limiter cannot be used.
*For the XR50R, the throttle housing and engine stop switch are integrated, so a high throttle cannot be installed unless another switch is attached.
*To install a high throttle, the handlebar pipe needs to be changed to φ22.2.
