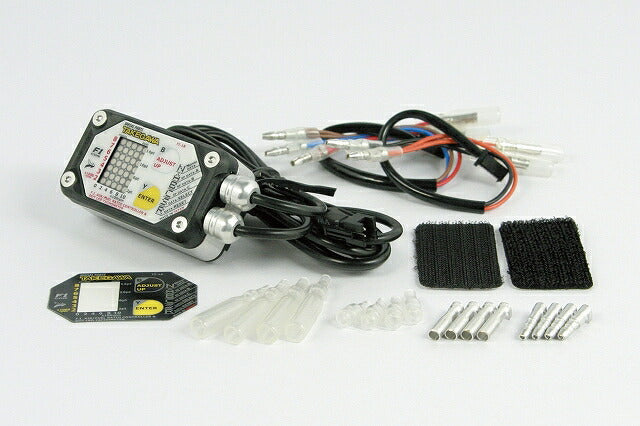

Injection Sub-Controller for Address V125 K5-K7 / K9-

Fuel injection volume can be set in ways not possible with other FI controllers!!
Other address-specific controllers are simple types that interrupt throttle position sensors, etc., and manipulate sensor output to adjust and shift the normal ECU's fuel injection volume data.
In the case of these controllers, there are RPM ranges where the injection volume does not match, and they cannot exceed the maximum injection volume limit of the normal ECU.
Takegawa's injection controller allows for richer settings than the normal maximum injection volume by extending the injection time, which is its greatest and most distinctive feature.
Includes three types of recommended data matched to vehicles equipped with Takegawa custom parts!!
Since three types of recommended settings are built in: "Sport Camshaft only", "S-Stage 156cc only", and "S-Stage 156cc + Silent Bomber or Silent Sport Muffler", setting is completed simply by selecting the custom part specification after installing the FI CON.
Fuel adjustment is possible in 1000rpm increments!!
In addition to fixed fuel adjustments, you can set your own injection map, expanding the possibilities for various customizations and ways to enjoy them.
Four types of basic map data are built-in, allowing you to easily set up an original map with just fine-tuning from the basic map.
A dot LED tachometer is displayed during driving.
*Precautions when installing FI CON: Do not use external electrical parts (HID kits, ignition coils or plug cords, third-party injection controllers that interrupt the throttle position sensor, etc.) together with this product, as they may cause malfunctions or damage.
*External HID headlights and headlight ON/OFF switches cannot be installed.
Compatible models
: Address V125 (CF46A-100001~ / CF4EA-100001~)
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
