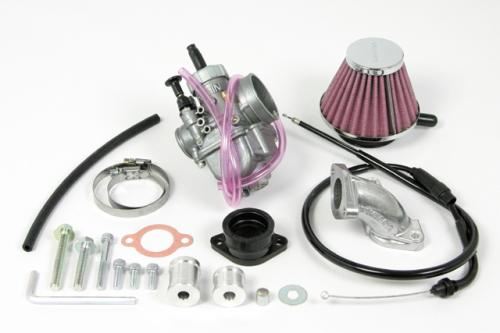

KEIHIN PE24 Carburetor Kit Type 2 CRF50F XR50R

【SP Takegawa 03-05-0222 KEIHIN PE24 Carburetor Kit Type 2 for CRF50F XR50R Engine Parts Takegawa】
■Product Description
This is an optimal carburetor kit for SP Takegawa's R Stage / R Stage EM / R Stage +D / Old Super Head / Super Head +R cylinder heads.

■Compatible Models
HONDA
CRF50F (AE03-1000001～)
XR50R (AE03-1400001～)

■Specifications
Type: Type-2
Intake Direction: Rear Left Intake
Compatible Engines: R Stage / R Stage EM / R Stage +D, Old Super Head / Super Head +R
Notes: Air filter (Type-2) and throttle cable included, uses normal throttle.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Thank you for your understanding.
*Processing of the stopper part of the standard throttle pipe is required. Consequently, the throttle limiter cannot be used.
*For the XR50R, the throttle housing and engine stop switch are integrated, so a high-throttle cannot be installed unless another switch is added.
*To install a high-throttle, the handlebar pipe needs to be changed to φ22.2.
