Super Street Outer Rotor Kit (Battery-less) Chaly

【SP武川 05-02-0029 Super Street Outer Rotor Kit (Battery Not Included) Chaly Takegawa】
■Product Description
This kit allows you to convert a 6V Chaly (point ignition) to 12V (C.D.I. ignition).
Additionally, by employing a Super Street outer rotor, it ensures stable ignition performance while also enabling sufficient brightness for lighting required for street use and charging to compensate for power consumed during riding.
This kit does not include a battery.

■Detailed Description
●Difference between other companies' products and SP Takegawa products
Kits sold by other companies that convert 6V to 12V only convert the lighting to 12V, leaving the ignition system as point ignition.
SP Takegawa's Super Street Outer Rotor Kit is a kit that combines C.D.I. ignition and 12V conversion, allowing for stable ignition performance and 12V electrical components simultaneously, expanding the range of custom parts available.
●Kit Installation
The pulse generator required for C.D.I. ignition can be stored in the narrow space within the left crankcase cover without any processing. The ignition coil and C.D.I. can be bolted directly to the frame by mounting them on a dedicated bracket.
Furthermore, there is no need for any wiring modifications related to the electrical system conversion; it can be installed simply by connecting couplers and fits neatly under the seat, just like the genuine part.

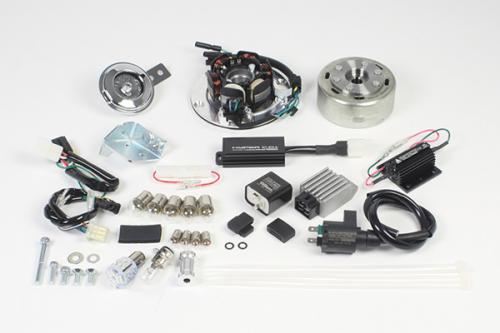

●Included Parts
Stator assembly (stator, stator plate, flywheel), C.D.I. ignition parts (hyper ignition coil, hyper C.D.I., bracket, conversion sub-harness, screws, etc.), 12V electrical parts (T-SPIRIT battery, regulate rectifier, metal clad resistor, plated horn, 12V light bulb set, flasher relay, conversion sub-harness, etc.)

■Compatible Models
HONDA
6V Chaly (Model/CF50 K2-3)
Point ignition / with basket
CF50-2300016～2540995・CF50-2540996～
※Vehicles without a basket are not compatible due to different horn mounting positions.

■Notes
※The image is for illustrative purposes only. It includes products with different sizes and colors.
※Product design and specifications are subject to change without prior notice. Please understand.
※Partial cutting of the battery holder is required.
※Separate purchase of SP Takegawa's 12V battery (JB2.5L-C) 05-11-0001 is required.
