φ48 Small DN Tachometer Kit 12500 RPM for Monkey 125

【SP武川 05-05-0085 φ48 Small DN Tachometer Kit 12500RPM Monkey 125 Small Stainless Meter Parts Takegawa】
■Product Description

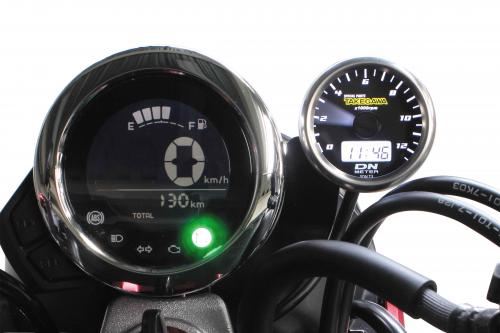

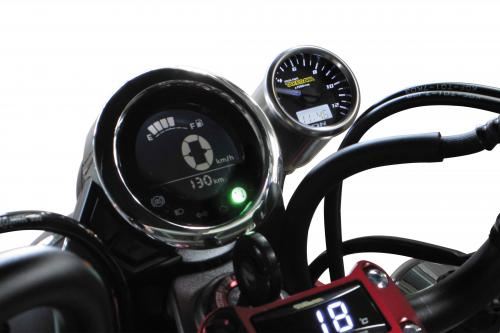

This φ48 Small DN Tachometer Kit 12500RPM can be mounted next to the stock meter and connected with a coupler, requiring no wiring modifications.

■Detailed Description

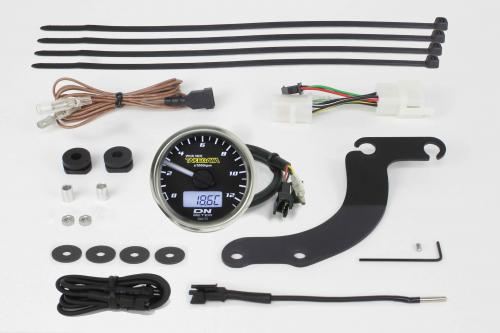

This product comes with a meter stay that can be positioned next to the genuine speedometer and a vehicle-specific sub-harness, eliminating the need for processing genuine parts or modifying wiring, allowing the Small DN Tachometer 12500RPM to be installed on the Monkey 125.
Wiring can be connected with a coupler.
The meter stay is made of steel with a black painted finish.
The needle angle is fully controlled by digital signals and a small motor, ensuring high needle retention and excellent reliability.
In addition to the RPM function, the meter body also features a thermometer, clock, engine work timer, and automatic measurement functions (max temperature record/max RPM record).
The black panel with white LED illumination offers excellent visibility at night.
Features a stainless steel body.
Comes with a rubber mount type stay.
●Needle-type electric tachometer: ~12500rpm display
●The monitor is equipped with various functions (digital display).
Thermometer (up to 120℃ measurable): A stick-type temperature sensor is included, allowing you to measure the temperature at the drain bolt by purchasing a separately sold SP Takegawa drain bolt.
If the temperature sensor is housed inside the cowl, it can measure the ambient temperature.
●Automatic measurement function
Automatically records the highest temperature and highest RPM when the meter is installed.
After driving, you can check the records by switching the meter display, and the records will be saved until reset.
●Engine Work Timer
A timer that automatically accumulates engine operation time at 500 rpm or more.
It stops when the engine speed falls below 500 rpm.
Maximum time is 9999 hours. It records in minutes up to 100 hours, and in hours after 100 hours.
Resettable. Display can be hidden.
●Clock
24-hour display. Display can be hidden.

■Compatible Models
HONDA
Monkey 125 (JB02-1000001~/JB03-1000001~/JB05-1000001~)
Monkey 125 Thai Model (MLHJB02/MLHJB03)

■Precautions
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*Absolutely do not install aftermarket H.I.D kits or other manufacturers' LED headlights or fog lights simultaneously. Some ballasts/inverters (voltage conversion devices) can emit high-voltage noise that adversely affects digital circuits, leading to product failure or malfunction.
*Do not simultaneously install headlight ON/OFF switches or aftermarket ignition devices.
*Do not use in combination with ignition system products or power generation system products other than SP Takegawa products.
*If racing plugs are used, or if plug caps and high-tension cords are replaced with non-genuine or non-SP Takegawa products, the operation may become unstable due to noise.
*Always use resistor-type spark plugs.
