φ48 Small DN Tachometer Kit 12500RPM for Dax125

【SP武川 05-05-0107 φ48 Small DN Tachometer Kit 12500RPM Dax125 Small Stainless Meter Parts Takegawa】
■Product Description

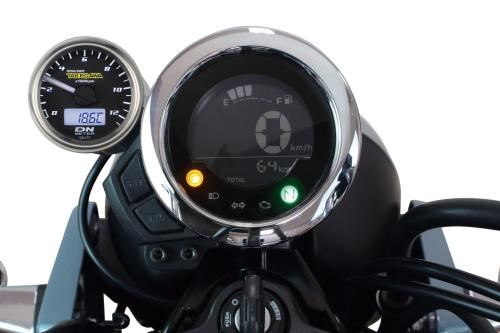

A φ48 small DN tachometer kit 12500RPM that mounts next to the stock meter and can be installed with a coupler-on connection without any wiring modifications.

■Detailed Description

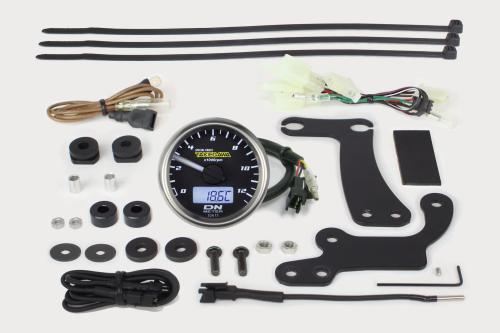

This product includes a meter stay that can be placed next to the genuine speedometerr and a vehicle-specific sub-harness, so there is no need for wiring processing, and the small DN tachometer 12500RPM can be installed on the Dax125 (JB04/JB06).
Wiring can be connected with a coupler-on.
The meter stay is made of steel with a black painted finish.
*Some processing of the stock meter lower cover is required.
Because the needle angle is completely controlled by digital signals and a small motor, the needle holding power is high, and reliability is excellent.
In addition to the rotation speed function, the meter body also has a thermometer, clock, engine work timer, and automatic measurement functions (maximum temperature record/maximum rotation speed record).

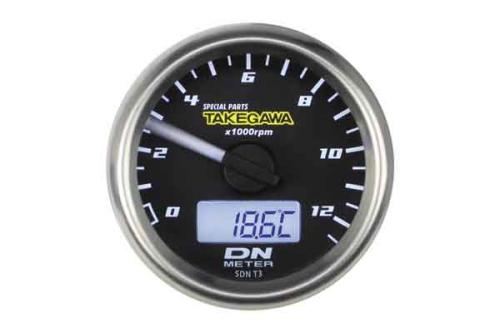

The black panel with white LED illumination provides excellent visibility at night.
Stainless steel body is used.
Rubber mount type stay included.
●Needle type electric tachometer: ~12500rpm display
●Monitor equipped with various functions (digital display)
Thermometer (can measure up to 120℃) A stick temperature sensor is included, so by purchasing the separately sold SP Takegawa drain bolt, you can measure the temperature at the drain bolt.
If the temperature sensor is housed inside the cowl, the outside air temperature can be measured.
●Automatic measurement function
Automatically records maximum temperature and maximum rotation speed when the meter is installed.
After driving, the records can be checked by switching the meter display, and the records are saved until reset.
●Engine work timer
A timer that automatically adds engine operating time above 500rpm.
It stops when it falls below 500rpm.
Maximum time 9999 hours. Recorded in minutes up to 100 hours, and in hours after 100 hours.
Resettable. Non-display setting available.
●Clock
24-hour display. Non-display setting available.

■Compatible models
HONDA
DAX125 (JB04-1000001~/JB06-1000001~)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.
*Never install aftermarket H.I.D. kits, other manufacturers' LED headlights or fog lights simultaneously. Some ballasts/inverters (voltage conversion devices) produce high-voltage noise that can adversely affect digital circuits, causing product failure or malfunction.
*Cannot be installed simultaneously with genuine optional shift indicator.
