φ48 Small DN Tachometer Kit 12500RPM CL250 CL500

【SP武川 05-05-0116 φ48 Small DN Tachometer Kit 12500RPM for CL250 CL500, Compact, Stainless Steel, Meter Parts, Takegawa】
■Product Description

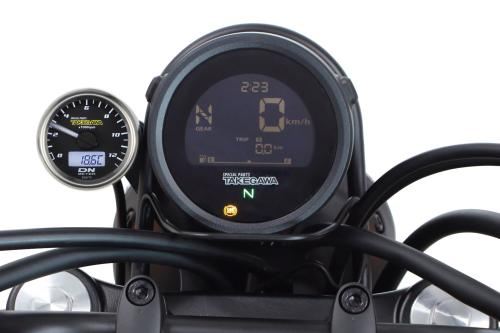

A φ48 Small DN Tachometer Kit 12500RPM that can be installed next to the stock meter with simple wiring modifications.

■Detailed Description

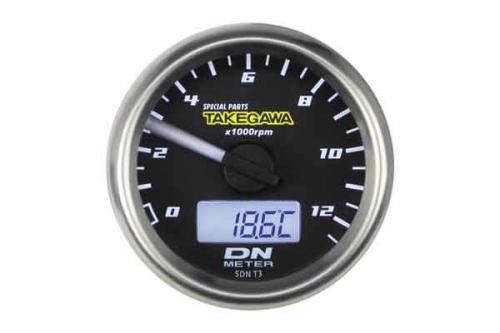

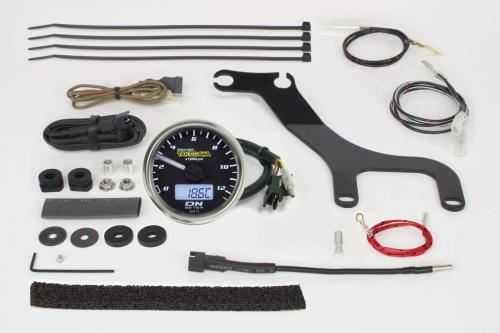

This product includes a meter stay that can be placed next to the genuine speedometer, and a sub-cord that enables installation with simple wiring processing, allowing the φ48 Small DN Tachometer (white LED) to be installed on the CL250/500.
The meter stay is made of steel with a black painted finish.
The needle angle is fully controlled by digital signals and a small motor, ensuring high needle holding power and excellent reliability.
In addition to the RPM function, the meter body also features a thermometer, clock, engine work timer, and automatic measurement functions (max temperature record/max RPM record).
The black panel with white LED illumination provides excellent visibility at night.
Stainless steel body adopted.
Rubber mount type stay included.
●Needle-type electric tachometer: ~12500rpm display
●Monitor equipped with various functions (digital display)
Thermometer (can measure up to 120℃) A stick temperature sensor is included, so by purchasing a separately sold SP Takegawa drain bolt, you can measure the temperature at the drain bolt.
By storing the temperature sensor inside the cowl, the outside air temperature can be measured.
●Automatic measurement function
Automatically records maximum temperature and maximum RPM when the meter is installed.
After driving, the records can be checked by switching the meter display and will be saved until reset.
●Engine work timer
A timer that automatically accumulates engine operating time above 500rpm.
It stops when it falls below 500rpm.
Maximum time 9999 hours. It records in minutes up to 100 hours, and in hours after 100 hours.
Resettable. Non-display setting available.
●Clock
24-hour display. Non-display setting available.

■Compatible Models
HONDA
CL250 (MC57-1000001～)
CL500 (PC68-1000001～)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
*When installing this product on the CL250/500, simple wiring processing is required.
*Absolutely do not install with aftermarket H.I.D. kits, or LED headlights or fog lamps from other companies. Ballasts/inverters (voltage conversion devices) may emit high-voltage noise that adversely affects digital circuits, causing product failure or malfunction.
*This product is made to order, so cancellations after ordering are not possible.
*Due to being made to order, this product takes time for delivery. Also, please note that the manufacturer may discontinue or change specifications without prior notice. Thank you for your understanding.
