Speed Sensor Kit 2 for OEM Meter, for Normal Caliper Bracket - GROM MSX125 MSX125SF

【SP武川 05-06-0059 Speed Sensor Kit 2 for Stock Meter, for Stock Caliper Bracket, GROM MSX125 MSX125SF Meter Parts Takegawa】
■Product Description

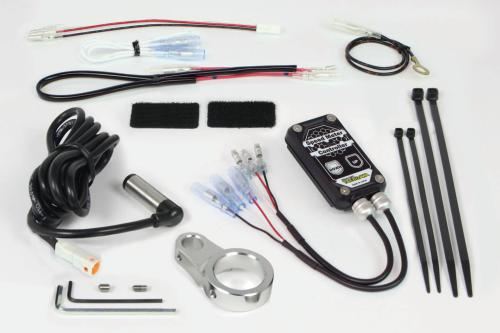

This speed sensor kit detects rear wheel rotation speed and drives the stock speedometer.
This product is for stock rear caliper brackets.

■Detailed Description
Even if the sprocket is changed or an SP Takegawa 5-speed cross mission is installed, the speed can still be displayed on the stock meter.
If the tire size is changed, the display speed can be corrected in 1% increments within a range of -30% to +30% relative to the stock speed by setting it with the push switch on the speedometer controller unit.
The lineup differs depending on the rear caliper bracket that secures the sensor.

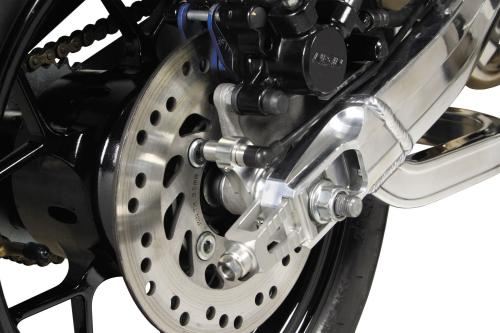

The included speed sensor stay is machined from aluminum and anodized.
Since a mounting harness is included, it can be installed with a coupler-on connection without cutting the stock harness.
It is compatible with both vehicles with stock swingarms and vehicles equipped with SP Takegawa aluminum swingarms.

■Compatible Models
HONDA
GROM (JC61-1000001 to 1299999 / JC61-1300001 to )
GROM (JC75-1000001 to )
MSX125 (MLHJC618_D5000001 to )
MSX125SF

■Notes
*Images are for illustration purposes only. Includes products of different sizes and colors.
*Product designs and specifications are subject to change without notice. Please understand.
*This product is exclusively for stock speedometers, SP Takegawa Super Multi DN Meters / Super Multi TFT Meters.
*Operation has not been confirmed with anything other than stock wheels and stock disc bolts.
*When installing an SP Takegawa 5-speed cross mission kit, this product must be installed. The speedometer will not operate otherwise.
*Since speed is detected from the rear wheel rotation speed, there will be a discrepancy with the actual speed due to factors such as changes in tire outer diameter or slippage.
*While the display speed can be corrected up or down, inappropriate settings can lead to enforcement for speeding. When using on public roads, please do so at your own risk.
*Simultaneous installation with H.I.D. or other manufacturers' LED headlights is not possible.
*Due to individual differences in genuine rear caliper brackets, processing may be required.
