Speed Sensor Kit 2 for Stock Meter with Normal Caliper Bracket for Monkey 125

【SP武川 05-06-0061 Speed Sensor Kit 2 for OEM Meter, for OEM Caliper Bracket, Monkey 125 Meter Parts, Takegawa】
■Product Description

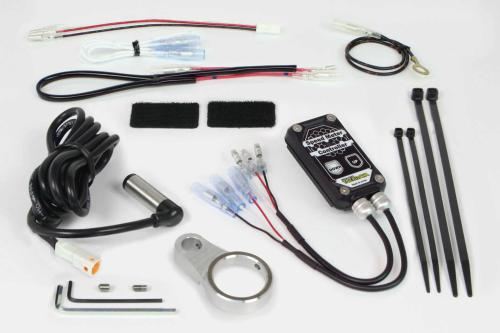

This speed sensor kit detects rear wheel revolutions and drives the OEM speedometer.

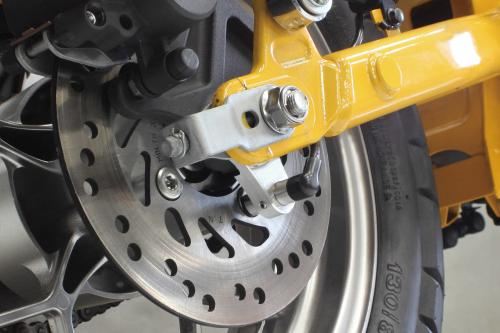

This product is for use with the OEM rear caliper bracket.

■Detailed Description
Even if the sprocket is changed or an SP Takegawa 5-speed cross transmission is installed, the speed can still be displayed on the OEM meter.
If the tire size is changed, the display speed can be corrected in 1% increments within a range of -30% to +30% compared to OEM, by setting it with the push switch on the speedometer controller unit. The lineup varies depending on the rear caliper bracket that secures the sensor.
The included speed sensor stay is machined from aluminum and anodized.
Since a mounting harness is included, it can be installed with a coupler-on connection without cutting the OEM harness.
It is compatible with both vehicles with an OEM swingarm and vehicles equipped with an SP Takegawa aluminum swingarm.

■Compatible Models
HONDA
Monkey 125 (JB02-1000001~)
Monkey 125 Thai Model (MLHJB02)

■Notes
*Image is for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*This product is for use with the OEM speedometer, SP Takegawa Super Multi DN Meter, and Super Multi TFT Meter only.
*Operation has not been confirmed with anything other than OEM wheels and OEM disc bolts.
*When installing the SP Takegawa 5-speed cross transmission kit, this product must be installed. The speedometer will not operate otherwise.
*Since speed is detected from rear wheel revolutions, there will be a discrepancy from actual speed due to factors such as changes in tire outer diameter and slippage.
*While it is possible to increase or decrease the displayed speed, inappropriate settings can lead to being caught for speeding. When using on public roads, please use at your own risk.
*Cannot be used simultaneously with H.I.D. or other manufacturers' LED headlights.
*Depending on individual differences in the OEM rear caliper bracket, processing may be required.
