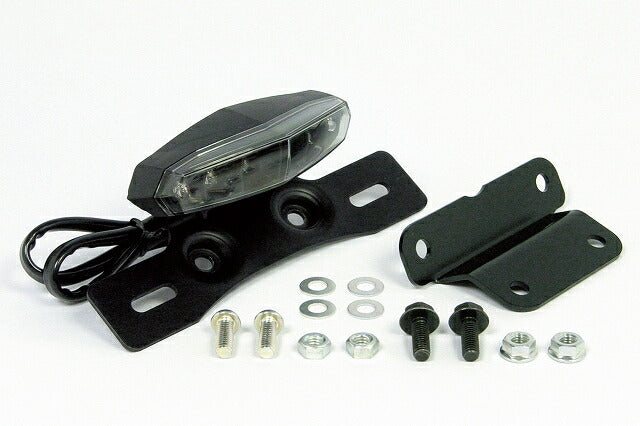

LED Mini Tail Lamp Kit Black Zoomer Carb/FI

The taillight and stop light use square-type, high-brightness, high-power LEDs with 4-leg mounting, providing excellent vibration resistance.
This reduces the number of LED lamps, allowing for a more compact taillight while maintaining the necessary brightness.
The license plate light features chip side-emitting LEDs arranged radially, achieving wide-angle emission with minimal unevenness.
This "LED Mini Taillight Kit" is ideal for the Zoomer, which primarily uses a pipe frame and features custom parts as accents.
The compact body perfectly matches the pipe frame aesthetic, and the LED taillight beautifully enhances the vehicle.
Furthermore, installation is easy as it simply replaces the stock taillight.
Note: *This lamp body does not have a reflector.
Legally, a rear reflector is required for driving on public roads.
A separate reflector kit manufactured by SP Takegawa must be purchased.
Reflector Kit 09-03-840
Color: Black
Size: Body size: 31mm (H) x 100mm (W) x 36mm (D) / Mounting bolt: M5 x 10 / Bolt spacing: 80mm / Illumination area: approx. 12 sq cm
Power consumption (at 13V): Taillight: approx. 53mA (0.7W) / Taillight OFF & Brake ON: approx. 117mA (1.5W) / Taillight ON & Brake ON: approx. 150mA (2W)
Compatible models: Zoomer (Honda Zoomer (AF58-1000001 and later) / Zoomer (FI) AF58-1700001 and later)
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
