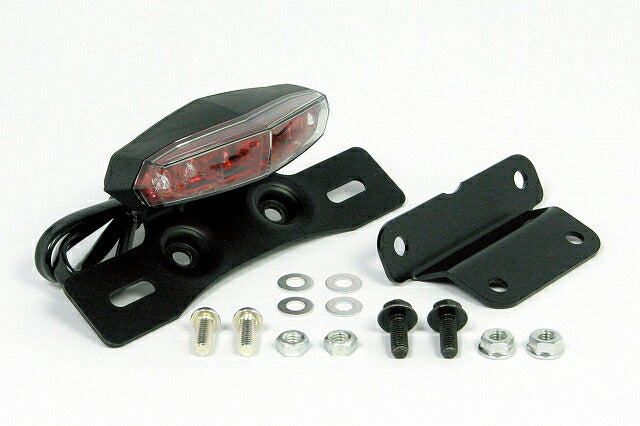

LED Mini Tail Lamp Kit - Red - Zoomer Carbureted/FI

The taillight and brake light employ square-type high-brightness, high-power LEDs with four-leg fixation for excellent vibration resistance.
This reduces the number of LED lamps required, allowing for a compact taillight while maintaining the brightness necessary for a taillight.
The license plate light features chip-side LEDs arranged radially, achieving wide-angle, even illumination with minimal unevenness.
This "LED Mini Taillight Kit" is ideal for the Zoomer, with its pipe frame as the main structure and custom parts as accents.
The compact body perfectly complements the pipe frame aesthetic, and the LED taillight beautifully enhances the vehicle.
Furthermore, installation is easy as it only requires replacing the standard taillight.
Note: *This lamp body does not include a reflector.
By law, a rear reflector is required for driving on public roads.
A separate SP Takegawa reflector kit must be purchased.
Reflector Kit 09-03-840
Color: Red
Size: Body size: 31mm (H) x 100mm (W) x 36mm (D) / Mounting bolt: M5 x 10 / Bolt spacing: 80mm / Illumination area: Approx. 12 sq cm
Power consumption (at 13V): Taillight: Approx. 53mA (0.7W) / Taillight OFF & Brake ON: Approx. 117mA (1.5W) / Taillight ON & Brake ON: Approx. 150mA (2W)
Compatible models: Zoomer (Honda Zoomer (AF58-1000001 and later) / Zoomer (FI) AF58-1700001 and later)
*Images are for illustration purposes only. Product designs and specifications shown are subject to change without notice. Thank you for your understanding.
