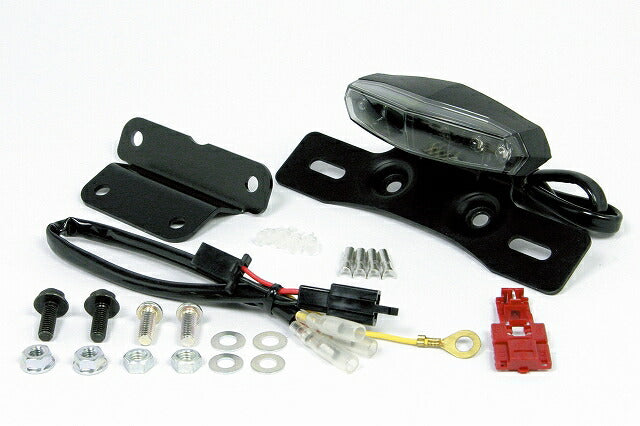

LED Mini Taillight Kit Black - For Ape 50/100 Fender Eliminator Kit (Aluminum)

The taillight and brake light employ square high-brightness, high-power LEDs with four-leg fixation for excellent vibration resistance.
This reduces the number of LED lamps required, allowing for a compact taillight while maintaining the necessary brightness.
The license plate light features chip-side emitting LEDs arranged radially, providing wide-angle illumination with minimal unevenness.
This taillight kit is specifically designed for vehicles equipped with SP Takegawa's fender eliminator kit.
By installing the LED mini taillight on a street-style vehicle that has a fender eliminator kit and the normal fender removed, the rear area is stylishly put together, beautifully accentuating the seat line.
Furthermore, by simultaneously installing an SP Takegawa custom seat, the flat shape of the custom seat and the sharp LED mini taillight complement each other perfectly, further enhancing the custom image.
Note: *Installation of this taillight kit requires the simultaneous installation of an SP Takegawa fender eliminator kit.
When purchasing a fender eliminator kit, the kit will vary depending on the model year, displacement, etc.
Please check the WEB catalog page 294- before purchasing.
*This lamp body does not have a reflector.
According to law, a rear reflector is required for driving on public roads.
A separate SP Takegawa reflector kit needs to be purchased.
Reflector kit 09-03-840
Color: Black
Size: Body size: Height 31mm x Width 100mm x Thickness 36mm / Mounting bolt: M5 x 10 / Bolt spacing: 80mm / Illuminated area: Approx. 12 square cm
Power consumption (at 13V): Taillight: Approx. 53mA (0.7W) / Taillight OFF & Brake ON: Approx. 117mA (1.5W) / Taillight ON & Brake ON: Approx. 150mA (2W)
Compatible models: APE50 (Honda APE50 (AC16-1000001/-1599999) / APE50 (FI) AC1600001 and later / AC18-1000001 and later *Applicable to vehicles equipped with Takegawa fender eliminator kit.
APE100 (Honda APE100 (HC07-1000001 and later / HC13-1000001 and later) *Applicable to vehicles equipped with Takegawa fender eliminator kit.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
