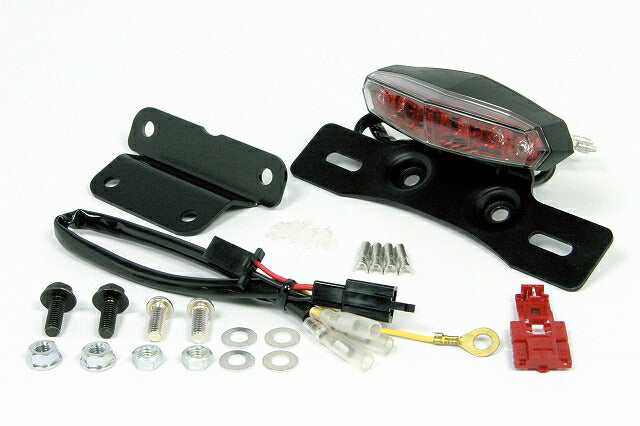

LED Mini Tail Lamp Kit Red for APE50/100 Fender Eliminator Kit (Aluminum)

The tail and stop lights use square-type high-brightness high-power LEDs with 4-leg fixation for excellent vibration resistance.
This allowed us to reduce the number of LED lamps and achieve a compact taillight while maintaining the necessary brightness.
For the license plate light, chip-side light LEDs are arranged radially, providing wide-angle illumination with minimal unevenness.
This taillight kit is exclusively for vehicles equipped with SP Takegawa's fender eliminator kit.
By installing the LED mini taillight on a street-style bike with the fender eliminator kit and removed stock fender, you can create a stylish rear end and enhance the beauty of the seat line.
Furthermore, by simultaneously installing an SP Takegawa custom seat, the flat shape of the custom seat and the sharp LED mini taillight will complement each other well, further enhancing the custom look.
Please note: *To install the taillight kit, simultaneous installation of an SP Takegawa fender eliminator kit is required.
If purchasing the fender eliminator kit simultaneously, the kit will vary depending on the model year, displacement, etc.
Please check WEB catalog P294- before purchasing.
*This lamp body does not have a reflector.
A rear reflector is legally required for driving on public roads.
A separate SP Takegawa reflector kit must be purchased.
Reflector Kit 09-03-840
Color: Red
Size: Body size: Height 31mm x Width 100mm x Thickness 36mm / Mounting bolts: M5 x 10 / Bolt spacing: 80mm / Illumination area: Approximately 12 sq cm
Power consumption (at 13V): Tail light: Approx. 53mA (0.7W) / Tail light OFF & Brake ON: Approx. 117mA (1.5W) / Tail light ON & Brake ON: Approx. 150mA (2W)
Compatible models: APE 50 (Honda APE 50 (AC16-1000001/-1599999) / APE 50 (FI) AC1600001 and later / AC18-1000001 and later *Applicable to vehicles equipped with Takegawa fender eliminator kit.
APE 100 (Honda APE 100 (HC07-1000001 and later / HC13-1000001 and later) *Applicable to vehicles equipped with Takegawa fender eliminator kit.
*Images are for illustration purposes only, and the design and specifications of the products listed are subject to change without notice. Thank you for your understanding.
