USB charger (2-port Type-A/C)

【Takegawa 05-13-0002 USB Charger (2-port Type-A/C) Universal Motorcycle QC3.0 PD Fast Charging】
■Product Description

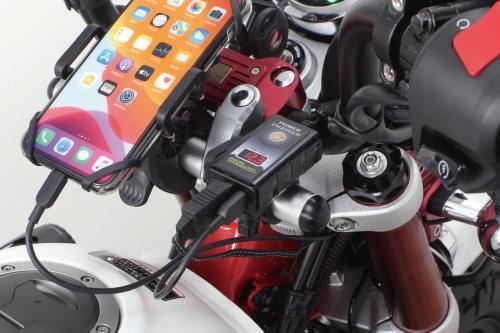

This product is a fast charger for motorcycles. It can be used to power and charge smartphones, tablets, navigation devices, GPS, action cameras, etc. In addition, since it uses two fast charging ports, QC3.0 and PD, you can charge your smartphone and use navigation simultaneously. Furthermore, it is equipped with a voltmeter, allowing you to check the voltage in real time and manage your battery's voltage. The charger body is equipped with an ON/OFF switch, allowing you to turn off the power when not needed, which not only saves energy but also protects connected devices.

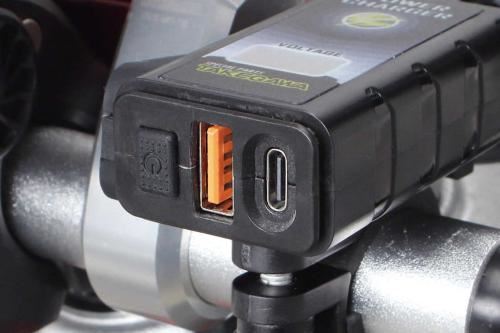

【Equipped with 2 Fast Charging Ports (QC3.0 & PD)】
This product features two fast charging ports: QC3.0 (Type-A) and PD (Type-C). This allows you to charge your smartphone and use navigation simultaneously.

・Charging Standard: QC3.0 (Quick Charge)
Output Voltage: 5V3.4A, 9V2.5A, 12V2A Maximum Output: 24W

・Charging Standard: PD (Power Delivery)
Output Voltage: 5V3A, 9V2.22A, 12V1.67A Maximum Output: 25W

・USB Port Protective Cover Included
The charger body is equipped with a silicone cover to protect the ON/OFF switch and power ports. It offers not only dust protection but also simple waterproofing.

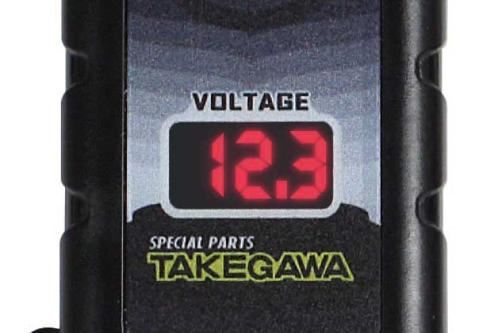

・Equipped with a Voltmeter
The charger body is equipped with a voltmeter, allowing you to check the vehicle's 12V battery voltage in real time via an LED digital display. This allows you to monitor the vehicle's battery voltage status and manage the battery's condition. Voltage display range: 6V to 30V.

【Equipped with Power ON/OFF Switch】
The charger body is equipped with an ON/OFF switch, allowing you to turn off the power when not needed. This not only saves energy but also protects connected devices such as smartphones and navigation systems.

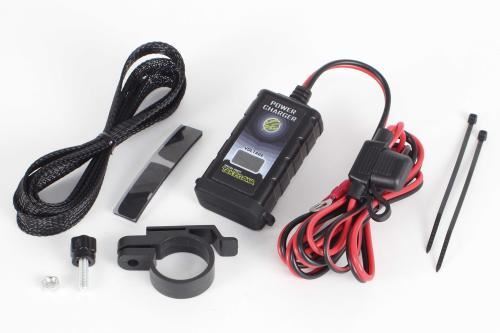

・Pipe Clamp Stay Included
A pipe clamp stay compatible with Φ22.2mm or Φ25.4mm pipes is included as an accessory. By clamping it to a handlebar pipe or bumper of the target pipe diameter, the charger can be secured. Additionally, since the charger body and stay are connected by a slide lock mechanism, no tools are required, and only the charger body can be attached/detached while the stay remains installed.

【Equipped with Multiple Protection Functions】
It incorporates low voltage protection, input overvoltage, output overcurrent, overvoltage, undervoltage, short-circuit protection, reverse connection protection, and chip internal high-temperature protection, ensuring safe use.

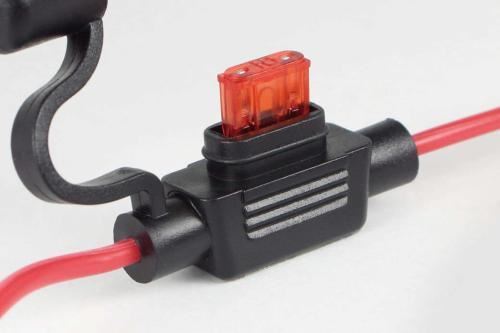

The wiring harness is equipped with a 10A fuse and includes a protective mesh tube.

■Compatible Models
Universal (vehicles with 12V batteries)

■Precautions
※If the device does not support fast charging, it may not be able to charge. Please be aware of this beforehand.
※Do not use with input voltages other than the specified voltage.
※Never operate while driving.
※Please check the maximum current consumption of the device to be connected. Connecting to devices that exceed the maximum current consumption may cause fire or malfunction.
※This product offers simple waterproofing. Do not spray water directly on it.
※It is not waterproof when in use. Do not use in rainy weather. Also, always close the cap when not in use.
※Images are for illustration purposes only. They may include products of different sizes or colors.
※Product design and specifications are subject to change without notice. Please be aware of this.
