USB charger (cigarette lighter socket type) (2-port Type-A/C)

【Takegawa 05-13-0003 USB Charger (Cigarette Lighter Socket Type) (2-Port Type-A/C) Universal Motorcycle QC3.0 PD Fast Charging TAKEGAWA】
■Product Description
This product can be used to power or charge smartphones, tablets, navigation devices, GPS, action cameras, and more.
In addition, it features two fast-charging ports, QC3.0 and PD, allowing simultaneous charging of a smartphone and use of a navigation device.
The charger body is equipped with an ON/OFF switch, allowing you to turn off the power when not needed, which saves energy and protects connected devices.

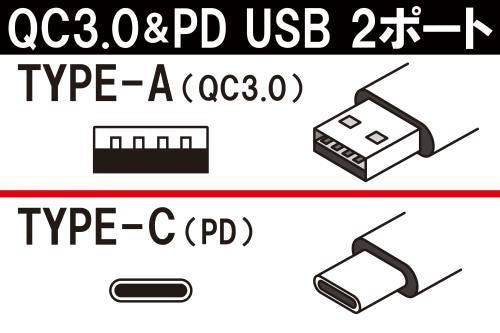

【Equipped with 2 Power Ports (QC3.0 & PD)】
This product features two fast-charging ports: QC3.0 (TYPE-A) and PD (TYPE-C). This allows simultaneous charging of a smartphone and use of a navigation device.

・Charging Standard: QC3.0 (Quick Charge)
Output Voltage: 5V/3.4A 9V2A 12V1.5A Max Output: 18W

・Charging Standard: PD (Power Delivery)
Output Voltage: 5V/3A 9V2A 12V1.5A Max Output: 18W

・USB Port Protective Cover Included
The charger body is equipped with a dustproof and splash-proof silicone cover to protect the ON/OFF switch and power ports.

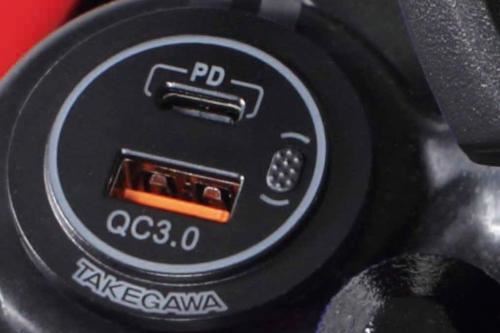

【Built-in Blue LED Backlight for Improved USB Port Visibility】
When the power is on, the two USB port inserts, the QC3.0/PD text, and the outer line illuminate in blue.
This improves visibility when used at night or when installed inside a scooter's inner box, enhancing convenience.

・Power ON/OFF Switch Included
The charger body is equipped with an ON/OFF switch, allowing you to turn off the power when not needed.
This saves energy and protects connected devices such as smartphones and navigation devices.

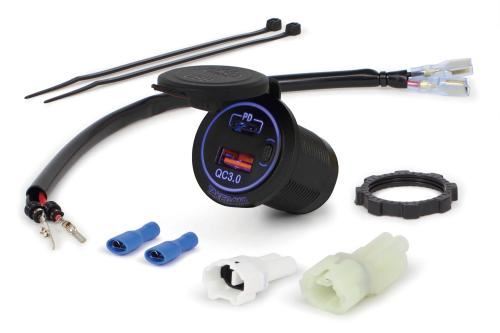

【Connector Housing Included for Vehicle-Side Coupler】
To accommodate vehicle-side couplers, connector housings for Honda and Yamaha vehicles are included.
Example: Honda CT125 - Can be connected to the vehicle-side service coupler.
Example: Yamaha Cygnus Gryphus - Replaces the vehicle-side USB power unit.

・SP Takegawa Confirmed Installation Vehicles

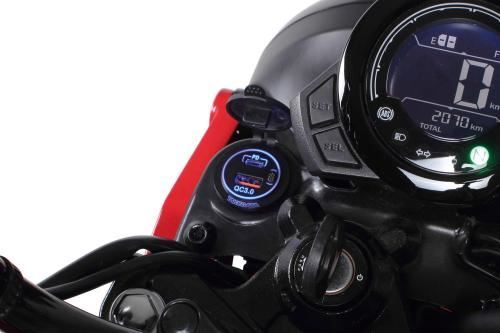

HONDA CT125 Hunter Cub (JA65)

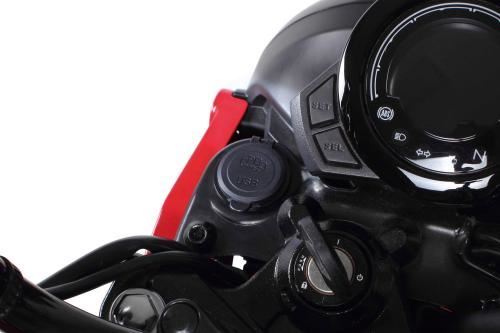

Install into the genuine accessory socket mounting part and connect to the genuine service coupler. See installation method below ↓

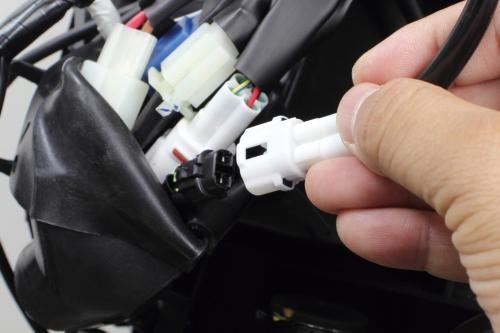

Insert the HONDA connector housing into the power harness included with this product and attach it to the USB power unit. Install it into the genuine accessory socket mounting part and connect it to the genuine service coupler on the genuine main harness inside the genuine headlight case to use it.
HONDA Dunk
Replaces the genuine cigarette lighter socket assembly. See installation method below ↓
Insert the HONDA connector housing into the power harness included with this product and attach it to the USB power unit. Remove the genuine cigarette lighter socket assembly installed on the vehicle and install the SP Takegawa USB power unit in the same position.
Connect to the genuine service coupler on the genuine main harness inside the genuine front cover to use it.
YAMAHA Cygnus Gryphus
Replaces the genuine USB assembly. See installation method below ↓
Insert the YAMAHA connector housing into the power harness included with this product and attach it to the USB power unit. Remove the genuine USB assembly installed on the vehicle and install the SP Takegawa USB power unit in the same position.
Connect to the coupler that was connected to the genuine USB assembly to use it.
*Removal and reinstallation of exterior parts may be required for installation.

■Compatible Models
Universal (Vehicles with 12V battery)
SP Takegawa Confirmed Installation Vehicles
【HONDA】
　CT125 Hunter Cub (JA55/JA65)
　Dunk (AF74/AF78)
【YAMAHA】
　Cygnus Gryphus (BKG1/BKG2/BKG3/BKG4/BKG5/BKG6)

■Precautions
*If your device does not support fast charging, it may not charge. Please be aware of this.
*Do not use with input voltages outside the specified range.
*Never operate while riding.
*Check the maximum current consumption of the device to be connected. Connecting to devices that exceed the maximum current consumption may cause fire or malfunction.
*This product is splash-proof. Do not spray water directly on it.
*It is not waterproof when in use. Do not use in rainy weather. Also, always close the cap when not in use.
*Cannot be installed on the old type SP Takegawa cigarette lighter socket stay (09-01-0001). It can be installed on the current type cigarette lighter socket stay.
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
