Steering Damper Set

【TAKEGAWA 06-01-0158 Steering Damper Set for Ape50, Ape50(FI), Ape100 Motorcycles - Custom Parts by TAKEGAWA】
■Product Description

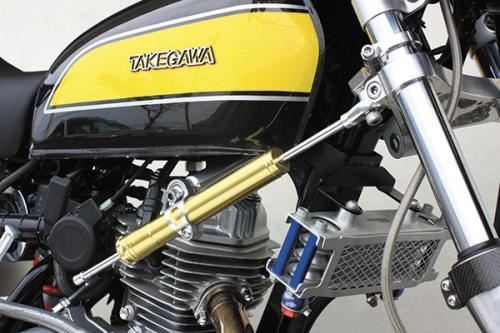

By installing the product on your vehicle using the dedicated steering damper stay, it absorbs handlebar vibrations and kickback from the road surface, improving driving stability.

【Details of Ape50/100 Set】
This set is designed for Ape50/100 models with standard front forks. It includes a steering damper stay kit that allows the installation of SP Takegawa's steering damper (Stroke: 125mm/06-01-0070).
The frame stay is secured with U-bolts, allowing for adjustment of the mounting position.
Both the damper stay and frame stay are machined from aluminum and feature a silver anodized finish.
The U-bolts are made of corrosion-resistant stainless steel.

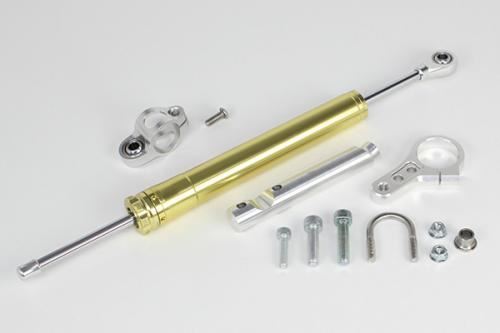

【Details of the Included Steering Damper Kit】
It achieves smooth operation through its damping characteristics and reduced friction loss, providing appropriate damping under high loads.
Stroke: 125mm
The damping force adjustment is a 9-stage, dial-type integrated into the body.
The steering damper's shell body is precisely machined from aluminum and features a champagne gold anodized finish.
The included damper holder with a pillow ball is machined from aluminum and features a silver anodized finish.
Both the body and holder are laser-marked with the SP Takegawa logo.

■Compatible Models
Ape50 (AC16-1000001~)
Ape50 (FI) (AC16-1600001~/AC18-1000001~)
Ape100 (HC07-1000001~/-1600001~)
Ape100 (HC03-1000001~)
*For standard front forks

■Precautions
*Exclusively for standard front forks.
*For Ape50/100 Type D, it is necessary to remove the genuine front brake hose clamp and change the routing of the brake hose.
*Images are for illustration purposes only. They may include products of different sizes or colors.
*Product designs and specifications are subject to change without notice. Please understand.
