φ30 Front Fork Kit Type 1/Disc/42mm Offset Monkey Gorilla

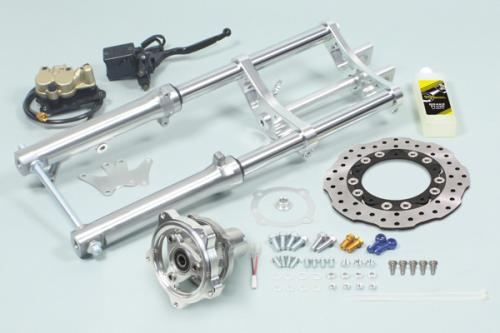

【SP Takegawa 06-01-0192 φ30 Front Fork Kit Type 1 / Disc / 42mm Offset Monkey Gorilla Suspension Parts Takegawa】
■Product Description
This front fork kit is designed to achieve vehicle balance and steering stability when converting to a 10-inch wheel from SP Takegawa.

■Detailed Description
●φ30 Front Fork (Type 1) (Fork Pitch 198mm)
The original φ30 inner tube front fork improves stroke stability with a free valve type damping force generation mechanism, reducing the shock on the front during rebound.
Furthermore, the use of DU metal significantly improves operability, making it a high-potential structure even for racing use.
Fork Oil Volume: 155cc
Fork Oil Viscosity: #20

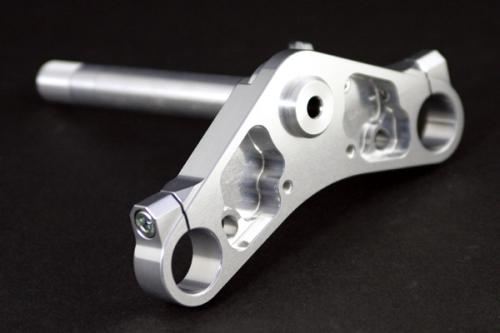

●Top Bridge, Steering Stem
Machined duralumin, silver anodized finish.
The back side features lightweight cutouts.
Includes steering lock bracket
42mm offset type
●Disc Brake Specification
Includes the front master cylinder, front caliper, wheel hub, and brake hose required for disc brakes.
Also, it is possible to upgrade to a Brembo 4-piston caliper later using the included disc rotor.

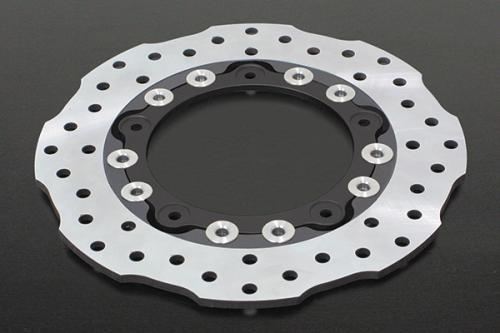

●φ220 Stainless Steel Floating Disc Rotor
Compared to a one-piece type disc rotor made entirely of cast iron, the floating disc rotor reduces the weight of the rotor body by making the wheel hub mounting part from aluminum.
●Prevents performance degradation due to thermal deformation
During braking, if heat is generated in the rotor body, the precision of the friction surface may decrease, which can lead to a reduction in disc brake performance.
In the case of a floating disc rotor, separating the wheel hub from the friction surface minimizes thermal deformation, allowing for stable braking performance to be maintained.
The friction surface of the floating disc rotor uses stainless steel, which is rust-resistant and highly durable.

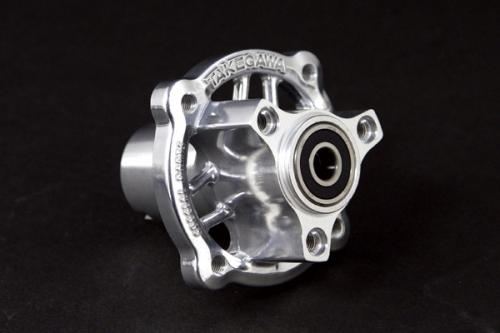

●Die-cast Aluminum Lightweight Wheel Hub
Die-casting increases strength and rigidity while achieving weight reduction.
Barrel polishing enhances the dress-up effect, making the wheels look beautiful.
Includes front brake master cylinder (mirror/M8 positive thread), front brake caliper
Fork Pitch: 172mm
Wheel Mounting Width: 134mm
Steering lock bracket included
Applicable Wheels: 10-inch, or SP Takegawa 12-inch

■Compatible Models
HONDA
Monkey Gorilla (Z50J-1300017~/AB27-1000001~1899999)
Monkey (FI) (AB27-1900001~)
●Applicable Wheels
10-inch, or SP Takegawa 12-inch

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications may change without prior notice. Please be aware.
*The standard front fender cannot be installed, so a separate purchase of an SP Takegawa 10-inch front fender is required.
*The φ30 Front Fork (Type 1) cannot be fitted with SP Takegawa's φ30 Front Fork Initial Adjuster Kit (06-06-0001/06-06-0002).
*This product is made-to-order, so cancellations after ordering are not possible.
*As this is a made-to-order product, it will take some time for delivery. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
