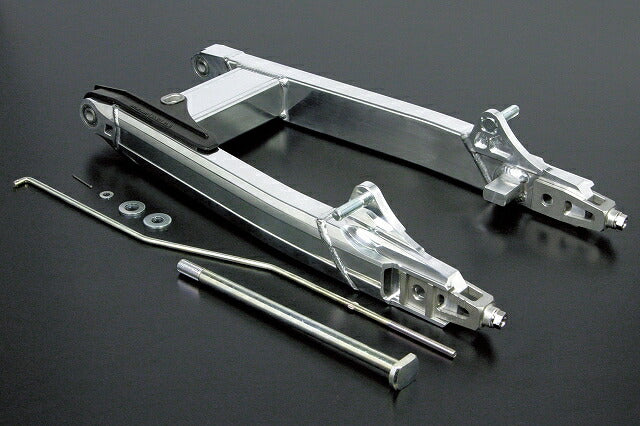

Aluminum Swingarm (+16cm, for Monkey (incl. FI) & Gorilla)

Each aluminum swingarm comes with a dedicated brake rod for the rear drum brake.
Recommended Rear Shock Length and Wheels
・4cm longer: 265mm / 280mm standard wheels / Takegawa aluminum wheels 8 inch (up to 3.5J)
*While 265mm rear shocks can be installed, it requires simultaneous installation of Takegawa aluminum forged brake arm 06-08-303 and some modification to the rear fender.
・8cm longer: 280mm Takegawa aluminum wheels 8 inch (up to 3.5J)
・12cm longer: 305mm Takegawa aluminum wheels 10-12 inch (up to 3.5J)
・16cm longer swingarm: 330mm Takegawa aluminum wheels 10-12 inch (up to 3.5J)
*Since the swingarm will be changed to a longer one, the drive chain must be changed to one suitable for the new swingarm length.
*When installing with a rear disc brake kit, the panel stopper needs to be modified.
*Depending on the rear wheel size and rear brake specifications, the method for centering the wheel may differ, and a separately sold wheel spacer may be required.
Type / 16cm Long
Compatible wheels / 10 inch, 12 inch
Stabilizer / None
Compatible vehicles
: Monkey Gorilla (Z50J-1300017~ / AB27-1000001~1899999)
: Monkey (FI) (AB27-19000001
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
