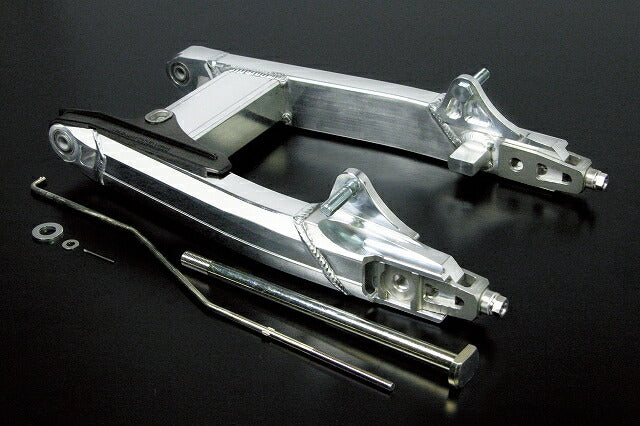

Aluminum Swingarm (8cm extended) for Monkey (including FI) and Gorilla

Each aluminum swingarm comes with a dedicated brake rod for the rear drum brake.
Recommended Rear Shock Length and Wheels
・4cm longer: 265mm / 280mm Normal wheels / Takegawa aluminum wheels 8-inch (up to 3.5J)
*While 265mm rear shocks can be installed, it requires simultaneous installation of Takegawa aluminum forged brake arm 06-08-303 and some modification to the rear fender.
・8cm longer: 280mm Takegawa aluminum wheels 8-inch (up to 3.5J)
・12cm longer: 305mm Takegawa aluminum wheels 10-12 inch (up to 3.5J)
・16cm longer swingarm: 330mm Takegawa aluminum wheels 10-12 inch (up to 3.5J)
*Since the swingarm will be longer, the drive chain must be changed to match the new swingarm length.
*If installing with a rear disc brake kit, the panel stopper will need to be modified.
*Depending on the rear wheel size and rear brake specifications, the method for centering the wheel may differ, and an optional wheel spacer may be required.
Type / 8cm Longer
Compatible Wheels / 8-inch
Stabilizer / None
Compatible Vehicles
: Monkey Gorilla (Z50J-1300017~ / AB27-1000001~1899999)
: Monkey (FI) (AB27-19000001~)
*Images are for illustration purposes only. Product design and specifications are subject to change without notice. Thank you for your understanding.
