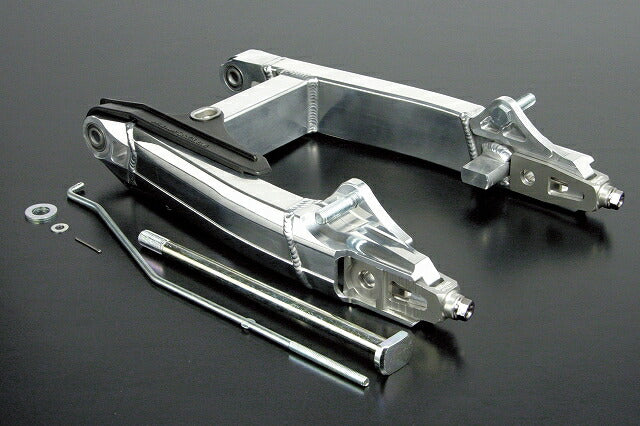

Aluminum Swingarm (4cm Extended) Monkey (incl. FI), Gorilla

Each aluminum swingarm comes with a dedicated brake rod for the rear drum brake.
Recommended Rear Shock Length and Wheels
・4cm longer: 265mm / 280mm standard wheels / Takegawa aluminum wheels 8 inch (up to 3.5J)
*While 265mm rear shocks can be installed, simultaneous installation of Takegawa forged aluminum brake arm 06-08-303 and some modification to the rear fender will be required.
・8cm longer: 280mm Takegawa aluminum wheels 8 inch (up to 3.5J)
・12cm longer: 305mm Takegawa aluminum wheels 10-12 inch (up to 3.5J)
・16cm longer swingarm: 330mm Takegawa aluminum wheels 10-12 inch (up to 3.5J)
*Since the swingarm length will be changed, the drive chain must be changed to match the new swingarm length.
*When installing simultaneously with a rear disc brake kit, modification to the panel stopper will be required.
*Depending on the rear wheel size and rear brake specifications, the method for centering the wheel may differ, and separately sold wheel spacers may be required.
Type / 4cm Long
Compatible Wheel / 8 inch
Stabilizer / None
Compatible Vehicles
: Monkey Gorilla (Z50J-1300017～ / AB27-1000001～1899999)
: Monkey (FI) (AB27-19000001～)
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. We appreciate your understanding.
