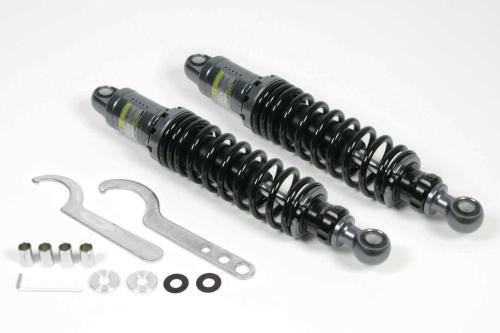

Aluminum CNC Rear Shock Absorber Gunmetal/Black 320-340mm Monkey 125 Dax 125

【SP武川 06-04-0136 Aluminum Machined Rear Shock Absorber Gunmetal/Black 320-340mm Monkey 125 Dax 125 Suspension Takegawa】
■Product Description
This is an oil-damped rear shock absorber with a spring rate that provides comfort for long rides.
It features a machined aluminum body with a gunmetal anodized finish for a luxurious look.
The spring uses a 2-stage pitch spring to improve comfort.
It offers soft initial operation and follows changes in speed and road conditions.
The spring's set length, rebound damping force, and ride height can be adjusted by changing the free length, allowing for adjustments to suit various riding conditions.
Spring adjustment: Adjustable within a range of 27mm from the initial set length towards compression.
Uses an adjust nut of the split clamp type that does not require a lock nut.
The spring color is black paint.
Damping force adjustment: 18-stage rebound adjustment is possible. Easily adjustable with a dial.
Free length: Stepless adjustment is possible between mounting hole pitches of 320mm and 340mm.
Includes notches at 5mm intervals as a guide for travel.
It can be used with the stock swingarm or with a SP Takegawa aluminum swingarm installed simultaneously.

■Compatible Models
HONDA
●Vehicles that can be installed on stock models

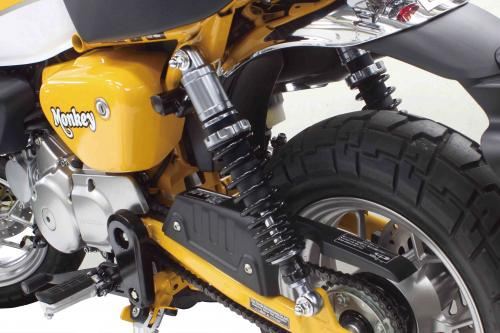

Monkey 125 (JB02-1000001~/JB03-1000001~)
Monkey 125 Thai Model (MLHJB02/MLHJB03)
Dax 125 (JB04-1000001~/JB06-1000001~)
*For Dax 125, if installed with a mounting pitch less than 330mm, simultaneous installation of SP Takegawa adjustable side stand (06-13-0093) is required.
●Vehicles that can be installed when a SP Takegawa 16cm long swingarm is installed
Monkey / Gorilla / Monkey (FI)
●Vehicles that can be installed when the stock chain case is removed
Super Cub 50 (C50-0200001~/C50-0400001~/C50-0600001~/C50-0800001~/C50-2100001~/C50-8500000~/C50-8900000~/C50-9000000~/C50-9400001~/AA01-1000001~1699999)
Super Cub 50 (FI) (AA01-1700001~)
Little Cub (AA01-3000001~3999999)
Little Cub (FI) (AA-01-4000001~)
Super Cub 70 (C70-1000001~/C70-1200001~/C70-1300001~/C70-1400001~/C70-1500001~)
Super Cub 90 (HA02-1800001~/HA02-1900001~/HA02-2000001~/HA02-2100001~/HA02-2200001~/HA02-2500001~/HA02-2600001~/HA02-2700001~/HA02-2800001~)
12V DAX50 (AB26-1000001~)

■Specifications
Body: Gunmetal Anodized
Spring: Black Painted
Mounting hole pitch: 320-340mm
Body: Machined Aluminum
Damping force adjustment: 18-stage rebound adjustment
Oil-damped type

■Notes

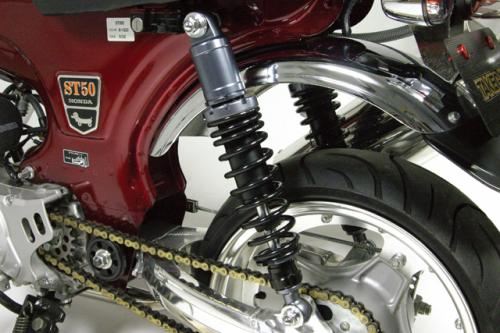

*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*Super Cub 50/70/90 and Little Cub cannot be used simultaneously with SP Takegawa aluminum chain guards.
*To adjust the ride height, the rear shock must be removed from the vehicle.
*When adjusting each part of the rear shock, please check the adjustment range and adjust within that range.
*The drive chain may interfere depending on the number of teeth of the driven sprocket, so please be sure to check before riding after installing the rear shock.
*When adjusting the spring, always fix the ride height adjustment lock nut with a wrench before adjusting. If not fixed, the spring and body will rotate together, and only the total length will extend.
