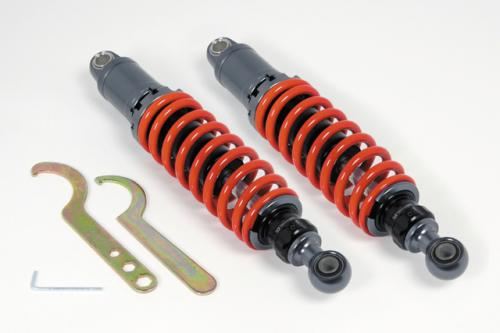

CNC Machined Rear Shock Absorbers Gunmetal/Red 320-340mm W650 W800

【SP武川 06-04-0137 Aluminum Cut-Out Rear Shock Absorber Gunmetal/Red 320-340mm W650 W800 Suspension Takegawa】
■Product Description
This is an oil damper type rear shock absorber that adopts a spring rate that provides comfort for long rides.
It features a luxurious finish with a machined aluminum body and gunmetal anodizing.
The spring set length, rebound damping force, and vehicle height can be adjusted by changing the free length, allowing for adjustments to suit the riding field.

■Detailed Description
●Spring Adjustment
Adjustable within a range of 27mm from the initial set length in the compression direction.
It employs a split clamp type adjust nut that does not require a lock nut.
The spring color is painted red.
Also, soft springs are available as optional parts. (Spring color is painted black)

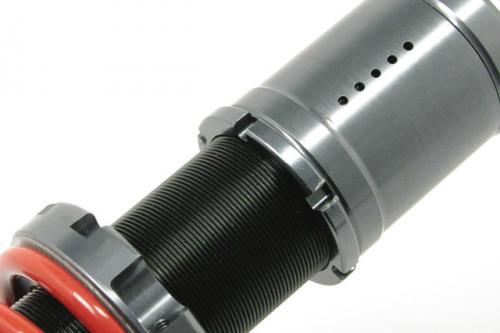

●Free Length
Infinitely adjustable between mounting hole pitches of 320mm and 340mm.
Comes with notches at 5mm intervals as a guide for travel.

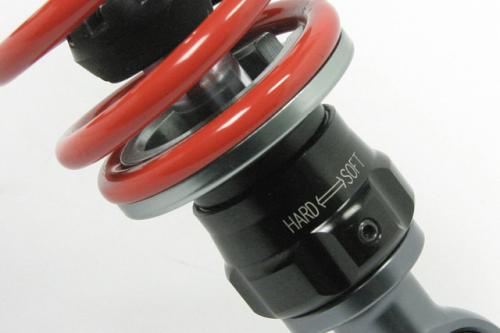

●Damping Force Adjustment
18-step rebound adjustment is possible.
Easily adjustable with a dial.
Bushing mounting diameter: Top (vehicle height adjustment side) inner diameter φ14mm, Bottom (damping force adjustment side) inner diameter φ10mm

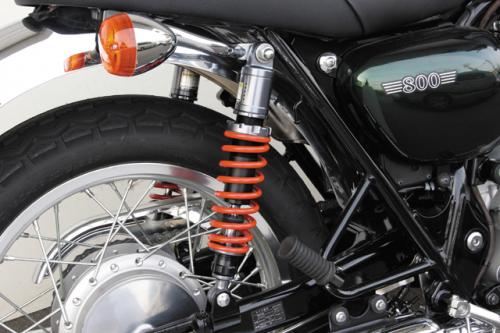

■Compatible Models
Kawasaki
W650・W800

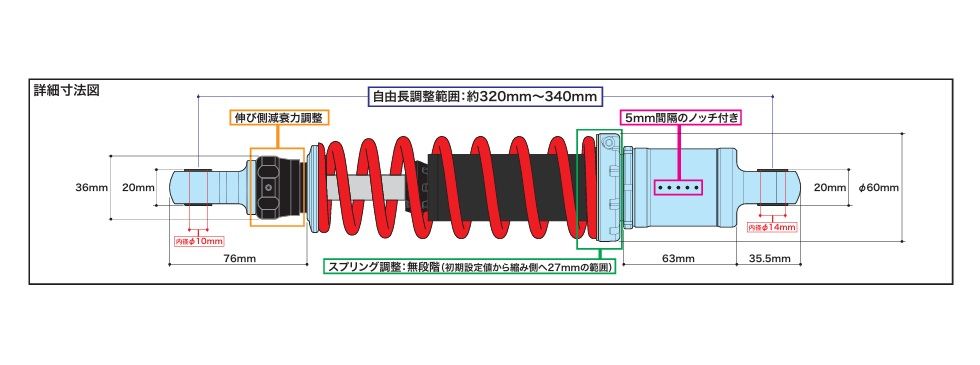

*If you check the detailed diagram and the vehicle has a bushing mounting diameter of φ14mm (top, vehicle height adjustment side) and φ10mm (bottom, damping force adjustment side), and a shock length in the range of 320mm to 340mm, it can be used on other motorcycles.

■Specifications
Body: Gunmetal anodized
Spring: Red paint
Mounting hole pitch: 320-340mm
Bushing mounting diameter: Top (vehicle height adjustment side) inner diameter φ14mm, Bottom (damping force adjustment side) inner diameter φ10mm
Body: Machined aluminum
Damping force adjustment: 18-step rebound adjustment
Oil damper type

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
*When adjusting the spring, always fix the vehicle height adjustment lock nut with a wrench before making adjustments. If not fixed, the spring and body will rotate together, and only the total length will extend.
*To adjust the vehicle height, it is necessary to remove the rear shock from the vehicle.
*Can also be used on W400, but the vehicle height will increase due to the different overall length.
*When using on vehicles other than W650/W800, please refer to the detailed dimension diagram and check for interference with chain guards, etc., due to the shape of the rear shock body before purchasing.
