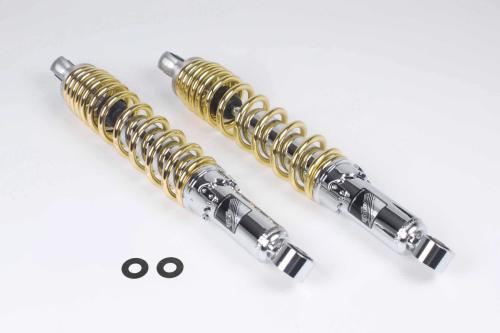

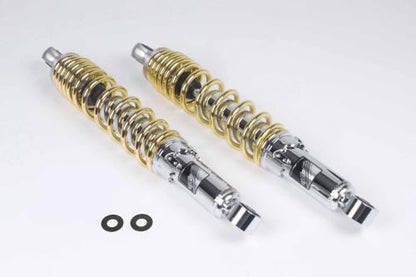

Lowered Rear Shock Absorbers, 10mm Drop, Chrome/Gold, 330mm, Set of 2, DAX125

【SP武川 06-04-0146 Lowdown Rear Shock Absorber 10mm Down Chrome Plated/Gold 330mm Set of 2 Dax125 Suspension Takegawa】
■Product Description

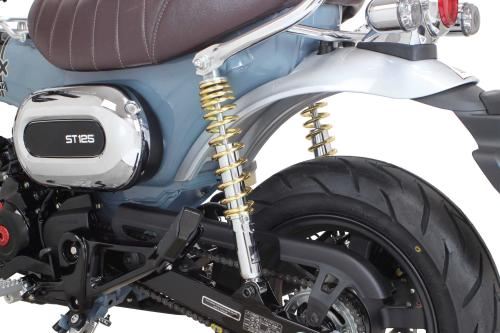

By installing this product, the seat height is lowered by approximately 10mm, improving foot accessibility when riding.
It enhances stability when waiting at traffic lights in town or when tandem riding.
Furthermore, by reviewing the damping force and spring rate, this oil damper type rear shock absorber improves road-following performance and provides stable riding enjoyment.
The main body is made of steel, and the cylinder is chrome plated.
The springs are available in four types: chrome plated, gold plated, red painted, and black painted.
The genuine side stand can be used as is.

■Compatible Models
HONDA
Dax125 (JB04-1000001~/JB06-1000001~)

■Specifications
Type: 10mm down
Cylinder: Chrome plated
Spring: Gold plated
Mounting pitch: 330mm
Mounting hole diameter: Upper φ10/Lower φ10
Body: Steel
Spring preload: 5-step adjustment
Oil damper type
Quantity: Set of 2

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.

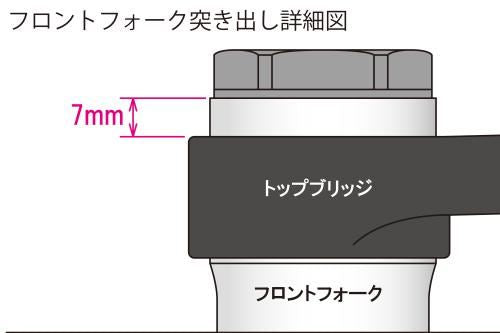

*When installing this product, to balance the vehicle during riding, it is necessary to simultaneously extend the front fork by up to 7mm.
*The front fork extension amount is a maximum of 7mm or less. If extended beyond the maximum amount, the front fork cannot be fixed to the top bridge and steering stem. Please be careful.
*When installing this product, the distance between the muffler and the ground will be closer. Please be careful as the muffler may come into contact with the ground when passing over curves or bumps.
*Even when this product is installed, the genuine side stand can be used as is. However, please note that the lean angle of the vehicle will change compared to the genuine one.
