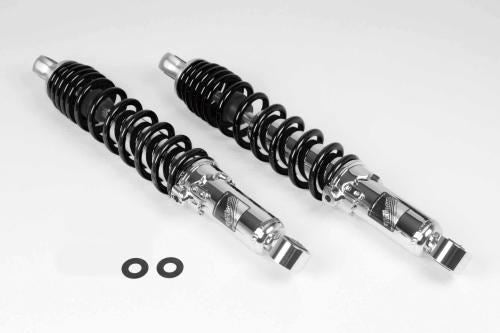

Lowered Rear Shock Absorbers 10mm Down Chrome Plated/Black 330mm Set of 2 for DAX125

【SP武川 06-04-0148 Lowdown Rear Shock Absorbers 10mm Down Chrome Plated/Black 330mm Set of 2 for Dax 125 Suspension Takegawa】
■Product Description

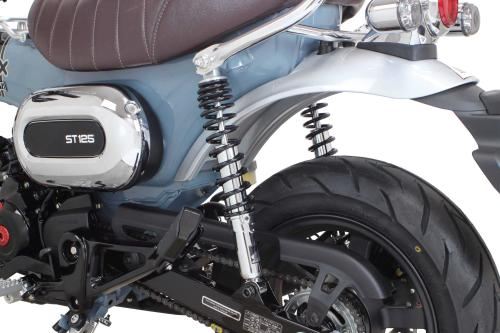

Installing this product lowers the seat height by approximately 10mm, improving foot accessibility when riding.
It enhances stability when waiting at traffic lights in urban areas or when riding with a passenger.
Furthermore, by reviewing the damping force and spring rate, these oil-damped rear shock absorbers improve road-following performance, allowing for stable riding.
The main body is made of steel, and the cylinder is chrome plated.
Springs are available in four types: chrome plated, gold plated, red painted, and black painted.
The genuine side stand can be used as is.

■Compatible Models
HONDA
Dax 125 (JB04-1000001～/JB06-1000001～)

■Specifications
Type: 10mm down
Cylinder: Chrome plated
Spring: Black painted
Mounting pitch: 330mm
Mounting hole diameter: Top φ10 / Bottom φ10
Body: Steel
Spring preload: 5-stage adjustment
Oil damper type
Quantity: Set of 2

■Notes
※Images are for illustration purposes only. They may include products of different sizes or colors.
※Product design and specifications are subject to change without notice. Please be aware.

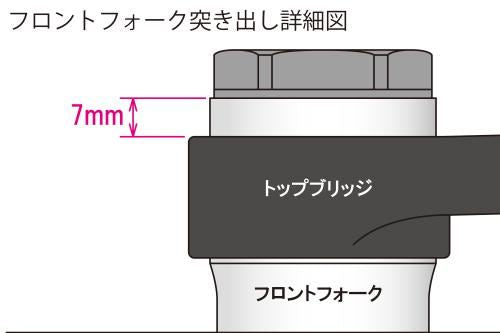

※When installing this product, it is necessary to extend the front fork by up to 7mm simultaneously to balance the vehicle while driving.
※The maximum extension amount for the front fork is 7mm or less. If extended beyond the maximum, the front fork cannot be secured to the top bridge and steering stem. Please be careful.
※When this product is installed, the distance between the muffler and the ground will be reduced. Please be careful as the muffler may come into contact with the ground when passing over curves or bumps.
※Even with this product installed, the genuine side stand can be used as is. However, please note that the vehicle's lean angle will change compared to the genuine setup.
