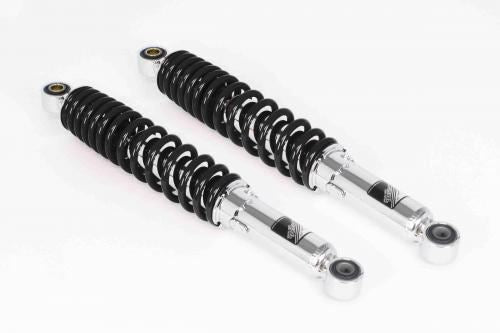

Low-Down Rear Shock Absorber 25mm Drop Chrome Plated/Black 345mm Cross Cub 50/110 CT125

【SP Takegawa 06-04-0160 Lowdown Rear Shock Absorber 25mm Down Chrome Plated/Black 345mm Cross Cub 50/110 CT125 Suspension Takegawa】
■Product Description
By installing this product, the seat height is lowered by approximately 25mm, improving foot accessibility when riding and increasing stability when waiting at traffic lights in town or when tandem riding.
Furthermore, by reviewing the damping force and spring rate, this oil damper type rear shock absorber improves road-holding ability and allows you to enjoy stable riding.
The main body is made of steel, and the cylinder is chrome plated.
You can choose from four types of springs: red painted, yellow painted, chrome plated, and black painted.

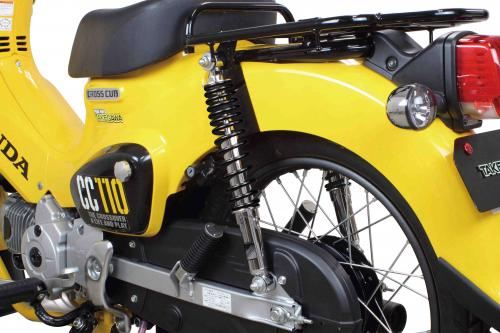

Exclusively designed for Cross Cub 50/110 and CT125 with offset mounting positions.

■Compatible Models
HONDA
Cross Cub (JA10-4000001~)
Cross Cub 50 (AA06-1000001~)
Cross Cub 110 (JA45-1000001~/JA60-1000001~)
CT125 (JA55-1000001~/JA65-1000001~)

■Specifications
Type: 25mm down
Cylinder: Chrome plated
Spring: Black painted
Mounting pitch: 345mm
Mounting hole diameter: Top φ12/Bottom φ10
Body: Steel
Spring preload: 5-step adjustment
Oil damper type

■Precautions
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*Spring adjust wrench is sold separately.
