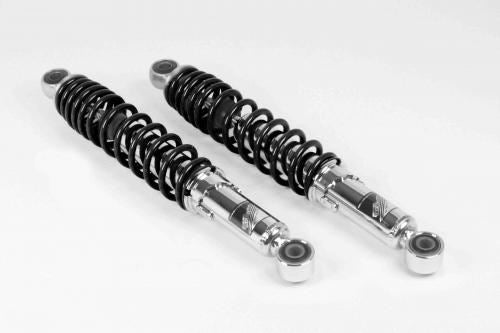

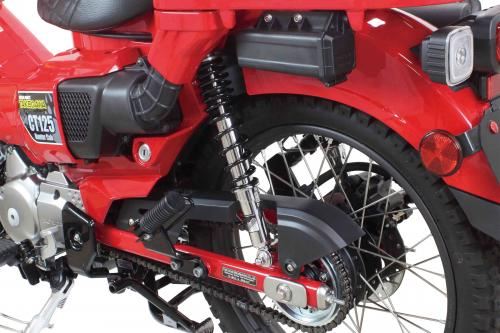

Lowdown Rear Shock Absorber 40mm Lower, Chrome Plated/Black 330mm for CT125 Hunter Cub

【SP Takegawa 06-04-0164 Lowdown Rear Shock Absorber 40mm Down Chrome Plated/Black 330mm CT125 Hunter Cub Suspension Takegawa】
■Product Description
By installing this product, the seat height is lowered by approximately 40mm, improving foot reach when riding and increasing stability when waiting at traffic lights or tandem riding in the city.
Furthermore, by reviewing the damping force and spring rate, this oil-damped rear shock absorber improves road-following performance and allows for stable riding.
The body is made of steel with chrome plating on the cylinder.
Springs are available in 4 colors: red paint, yellow paint, chrome plating, and black paint.
Specially designed for CT125 with offset mounting position.

■Compatible Models
HONDA
CT125 (JA55-1000001~/JA65-1000001~)

■Specifications
Type: 40mm down
Cylinder: Chrome plated
Spring: Black paint
Mounting pitch: 330mm
Mounting hole diameter: Top φ12/Bottom φ10
Body: Steel
Spring preload: 5-step adjustment
Oil damper type

■Precautions
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.
*Spring adjustment wrench sold separately.
*When this product is installed, the genuine side stand cannot be used. Please use a center stand or the separately sold SP Takegawa adjustable side stand (06-13-0093).
*When this product is installed, it will be heavier to put the center stand up than with the genuine product. Please be aware of this in advance.
*When this product is installed, the distance between the muffler and the ground will be closer. Please be careful as the muffler may come into contact with the ground when passing over curves or bumps.
*When this product is installed, it is necessary to extend the front fork by 20mm at the same time to balance the vehicle body while driving.
