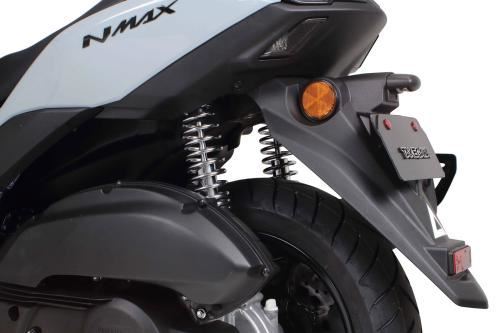

Lowered Rear Shock Absorbers, Chrome Plated

[Takegawa 06-04-0192 Lowdown Rear Shock Absorber Chrome Plated Cygnus X NMAX NMAX155 Motorcycle Custom TAKEGAWA]

■Product Description

The "Lowdown Rear Shock Absorber" improves foot accessibility when riding and enhances stability when waiting at traffic lights in town or when tandem riding.

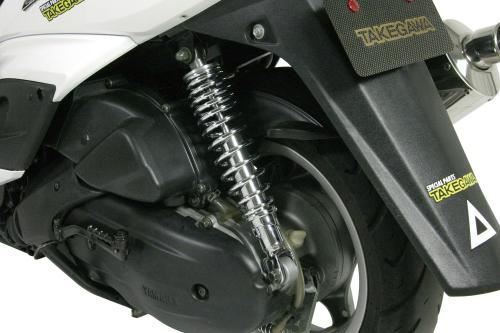

Installing it on the target vehicle lowers the seat height, improving foot accessibility when riding. This enhances stability when waiting at traffic lights in town or when tandem riding.

Furthermore, by reviewing the damping force and spring rate, this oil damper type rear shock absorber improves road following performance and allows for stable riding.

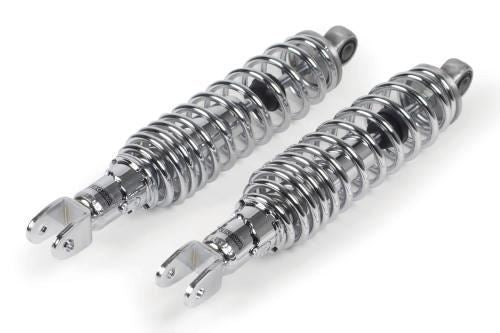

The main body is made of steel, and both the cylinder and spring are chrome-plated.

The spring rate is the same as the stock one, so comfort is not compromised even with the lowdown.

The stock side stand can be used as is.

・Oil damper type

・Spring preload: 5-step adjustable

・Mounting pitch: 300mm (stock: 320mm)

[For Cygnus X]

Free length is 20mm shorter than the stock rear shock.

When used with SP Takegawa's lowdown reinforced front fork springs (06-06-0005/discontinued), more effective lowdown customization can be achieved.

Maximum 30mm down when installed simultaneously (compared to stock). The stock side stand can be used as is.

[For NMAX (2DS2 / BV35) and NMAX155 (BV43)]

Free length is 30mm shorter than the stock rear shock. The stock side stand can be used as is.

[For NMAX (BUG1) and NMAX155 (BTB1)]

Free length is 20mm shorter than the stock rear shock. The stock side stand can be used as is.

■Compatible models

Cygnus X (SE12J/SE44J/1YP)

NMAX (2DS2/BV35/BUG1)

NMAX155 (BV43/BTB1)

■Specifications

Color: Chrome plated

■Notes

*Due to the lowdown of this product, the center stand will feel heavier compared to the stock suspension. Please be aware of this in advance.

*Images are for illustration purposes only. Products with different sizes and colors are included.

*Product design and specifications are subject to change without notice. Please understand.
