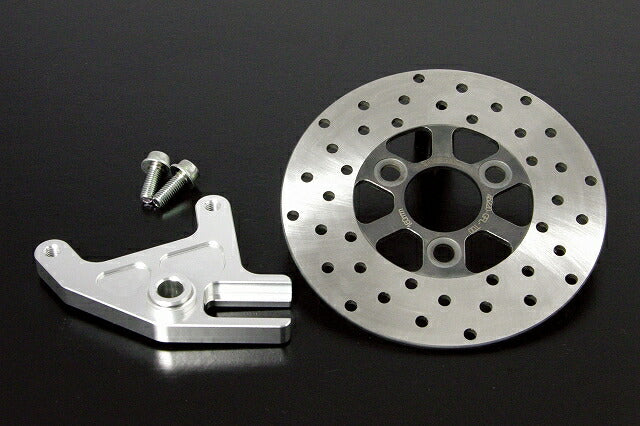

φ160 Disc Rotor & Bracket Kit (Brembo/2P Caliper) Damper Hub Type 2/Rigid

This bracket kit with a dedicated disc rotor is required for those who currently have a vehicle equipped with 10-inch wheels (or Takegawa 12-inch wheels) and a Takegawa Type 2 rear disc damper hub, and wish to install a Brembo opposed 2P caliper.
To maximize the effectiveness of the Brembo opposed 2P caliper's brake pads, Takegawa has adopted a dedicated φ160 disc rotor that ensures a large contact area.
Unlike other kit parts that require shaving down the brake pads, this kit allows for powerful braking performance.
It uses a φ160 stainless steel disc rotor.
Cannot be installed on vehicles equipped with early model aluminum machined damper hubs.
Incompatible kit part numbers: 06-08-1754 / 06-08-1753
Applicable to 10-inch (up to 3.5J) / 12-inch wheel vehicles.
Cannot be installed on 8-inch wheels.
The brake hose included with each kit that uses the rear disc damper hub (Type 2) cannot be used, so you will need to purchase a banjo and brake hose separately.
Compatible models:
: Monkey, Gorilla
: Monkey (FI)
: Monkey BAJA
Vehicles equipped with Takegawa rear disc damper hub
*The image is for illustrative purposes only, and the design and specifications of the products shown may be changed without prior notice. Thank you for your understanding.
