Brake Adjusting Nut 2P Gold Monkey Gorilla Dax50 Cub Series

【SP武川 06-08-0148 Brake Adjust Nut 2P Gold Monkey Gorilla Dax50 Cub Series Drum Brake Dress-up Takegawa】
■Product Description

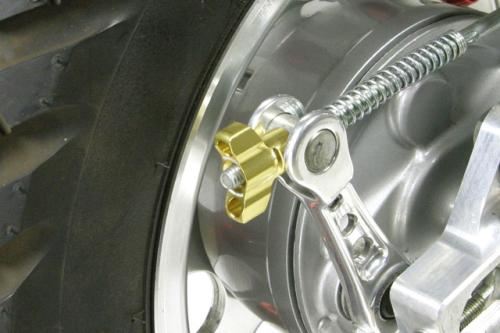

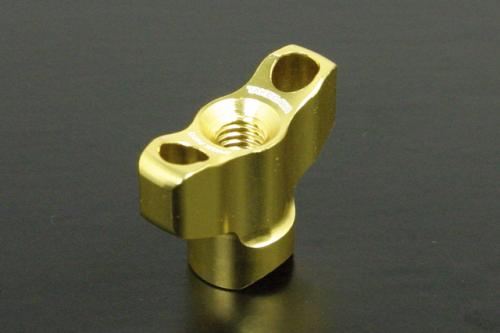

This is a brake adjust nut made from aluminum, machined and color anodized, perfect for dressing up the front/rear brake area of drum brake vehicles.
The adjust nut has a sleek 2P type design.
The SP Takegawa logo is laser-marked.
It is compatible with standard drum brake arms (front/rear), and SP Takegawa brake arms for Monkey, Gorilla, Ape, and Cub.

■Compatible Models
Monkey/Gorilla
Monkey (FI)
CD50/CL50/Benly50S
CD90
6V DAX50 (ST50-6300022～6346265) *Rear only
12V DAX50 (AB26-1000001～)
Chaly (CF50-2700014～)
Super Cub 50 (C50-8000026～0095210/C50-0200001～0999999/C50-2100001～2299999/AA01-1000001～1699999)
Super Cub 50 (FI) (AA01-1700001～/AA04-1000001～)
Super Cub 50 (FI) (AA09)
Super Cub 50 Pro (FI) (AA07)
Little Cub (C50-4300001～/AA01-3000001～3999999)
Little Cub (FI) (AA01-4000001～)
Super Cub 110 (JA07/JA10)
Super Cub 110 (JA44/JA59)
Super Cub 110 Pro (JA42/JA61)
Cross Cub 50 (AA06-1000001～)
Cross Cub 110 (JA45-1000001～/JA60-1000001～)
Cross Cub (JA10-4000001～)
CRF110F (JE02-1000001～)
Ape50 (AC16-1000001～1599999)
Ape50 (FI) (AC16-1600001～)
Ape100 (HC07-1000001～)
PCX (JF28-1000001～1099999) *Rear only
PCX (JF28-1100001～) *Rear only
PCX150 (KF12-1000001～) *Rear only
Dio110 (JF31-1000001～) *Rear only
Dio110 (JF58-1000001～) *Rear only
Lead125 (JF45-1000001～) *Rear only
Lead125 (JK12-1000001～) *Rear only
Super Cub C125 (JA48-1000001～) *Rear only

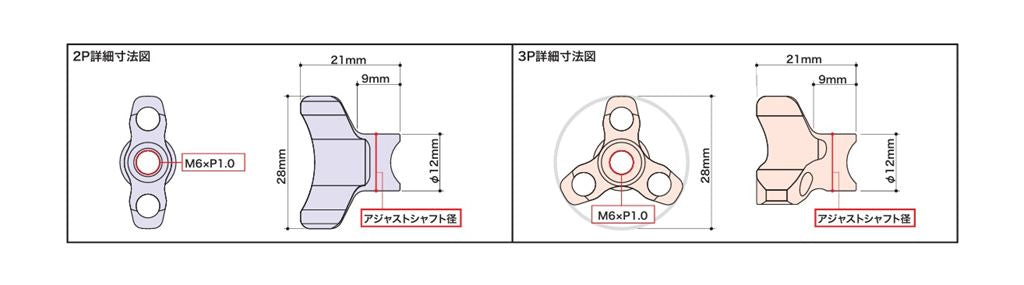

Brake adjust nut with the same shape as the detailed diagram
Applicable specification: Drum brake

■Specifications
Type: 2P
Color: Gold

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*Interference or inability to install may occur depending on other manufacturers' wheels and tires installed.
*The early 4L Monkey model (~Z50J-111247) cannot be installed due to its different shape.
*6V DAX50 (ST50-6300022～6346265) can only be used for the rear. It cannot be installed on the front.
