Aluminum Forged Reinforced Brake Arm Kit for Front - Cross Cub 50/110, Super Cub 50/110 Pro

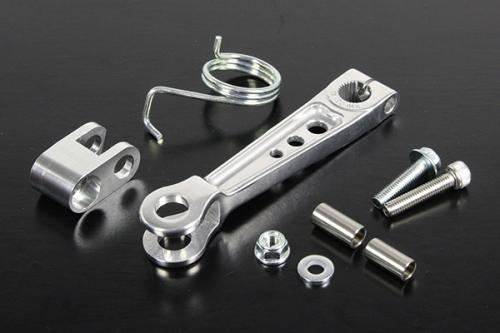

【SP武川 06-08-0151 Aluminum Forged Reinforced Brake Arm Kit, Front for Cross Cub 50/110 Super Cub 50/110 Pro, Brake Parts, Takegawa】
■Product Description
This product extends the length of the normal brake arm and changes the lever ratio, allowing for lighter braking than the normal one.
In addition, a cable adapter is included in the kit, so the brake cable does not become angled even if the brake arm is extended.

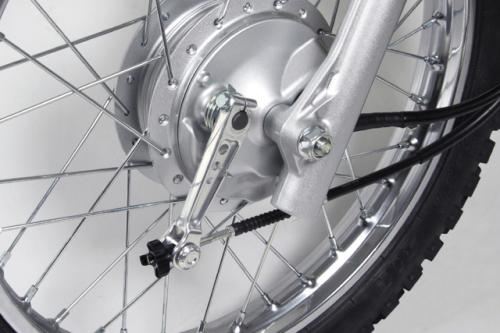

Brake arm length when installed: 27mm longer than normal
Recommended for strengthening the vehicle's brakes when the top speed increases due to bore-up or other modifications.

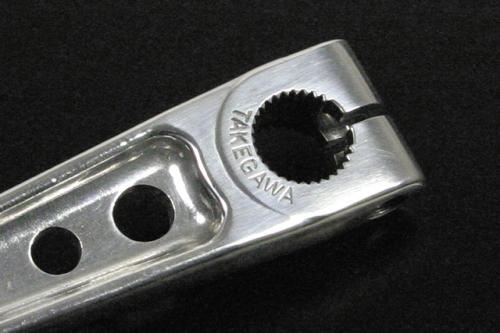

The brake arm is made of forged aluminum alloy to increase its strength.
It also achieves weight reduction compared to the steel normal brake arm.
Brake arm weight: 30% lighter than normal
The surface of the brake arm is buffed to enhance the dress-up effect when installed.
The cable adapter is machined from aluminum and features a silver anodized finish.
Simultaneous installation of SP Takegawa's brake adjust nut and brake arm joint is possible.
Simultaneous installation further enhances the custom image.

■Compatible Models
HONDA
Cross Cub (JA10-4000001~)
Super Cub 110 PRO (JA10-1100001~)
Super Cub 110 PRO (JA42-1000001~)
Super Cub 50 PRO (AA04-3000001~)
Super Cub 50 PRO (AA07-1000001~)
Cross Cub 50 (AA06-1000001~)
Cross Cub 110 (JA45-1000001~)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications may change without notice. Please be aware of this.
*For normal front drum brakes. Cannot be used for rear drum brakes.
*When installed, the operating angle (amount of lever pulled) for braking increases.
