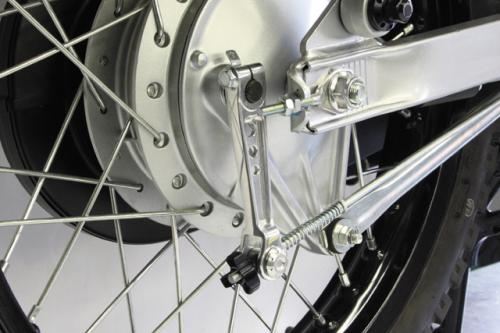

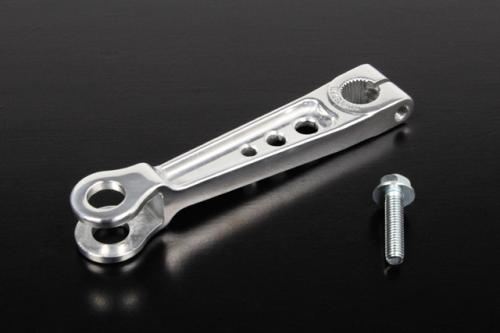

Aluminum Forged Reinforced Brake Arm Kit - Rear for Cross Cub 50/110, Super Cub 50/110 Pro

【SP Takegawa 06-08-0236 Forged Aluminum Reinforced Brake Arm Kit, Rear, Cross Cub 50/110, Super Cub 50/110 Pro, Brake Parts, Takegawa】
■Product Description
This product extends the length of the stock brake arm and changes the arm ratio, allowing for braking with less force than the stock arm.
It is recommended for strengthening the brakes on your vehicle if the top speed has increased due to bore-up, etc.
The brake arm is forged from aluminum alloy to increase its strength.
In addition, it achieves weight reduction compared to the steel stock brake arm.
The surface of the brake arm is buffed to enhance its dress-up effect when installed.
●For Cross Cub (JA10)
Brake arm length: 10mm longer than stock
Brake arm weight: 60% lighter than stock
●For Super Cub 50 Pro / 110 Pro
Brake arm length: 15mm longer than stock
Simultaneous installation of SP Takegawa brake adjust nut and brake arm joint is possible.
By installing them simultaneously, you can further enhance the custom look.

■Compatible Models
HONDA
Cross Cub (JA10-4000001~)
Super Cub 50 Pro (FI) (AA07-1000001~)
Super Cub 110 Pro (FI) (JA42-1000001~)
Cross Cub 50 (AA06-1000001~)
Cross Cub 110 (JA45-1000001~/JA60-1000001~)

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please understand.
*This is for normal rear drum brakes. It cannot be used for front drum brakes.
*Cannot be installed on Super Cub 50/70/90/100EX, Little Cub, Super Cub 110 (JA07/JA10).
