Parking Brake (Quick Release) - Red

【Takegawa 06-08-0271 Parking Brake (Quick Release) Red Universal Motorcycle Custom TAKEGAWA】
■Product Description
A "parking brake" that fixes the brake lever when installed on the front brake master cylinder.
A convenient item that allows you to fix the brake lever in the braking position!!
Simply squeeze the brake lever again to easily release the stopper.
Also useful for securing a vehicle when loading a motorcycle into a car.
Prevents the vehicle from moving when parked on rough terrain or uneven surfaces.
Features a machined aluminum, anodized finish for a custom look.
Easy installation: simply remove the stock lever pivot bolt and install this product!!

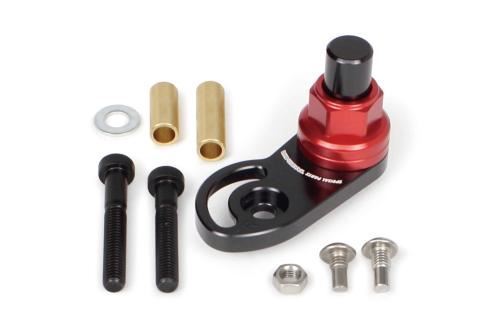

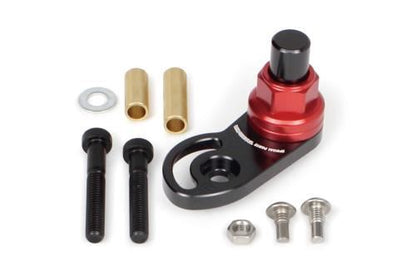

Includes two types of collars and bolts of different lengths to increase versatility.

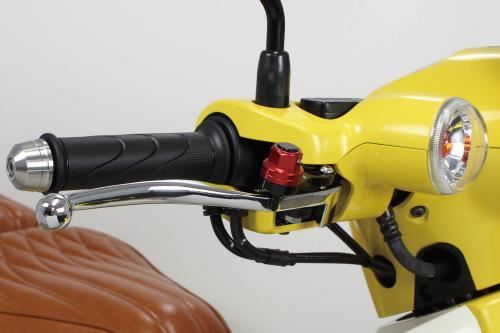

By installing this product on the front brake master, the lever can be fixed in the braking position. This prevents the vehicle from moving forwards or backwards after parking, as the parking position can be fixed.
Furthermore, even when loading a motorcycle into a car, the vehicle's position can be fixed, so it can be used to prevent slippage when securing the vehicle with tie-downs.

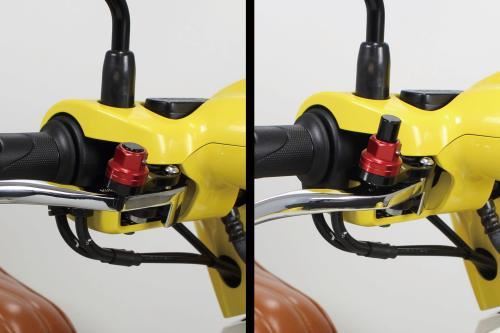

The parking brake adopts a quick-release type, so after fixing the brake, the stopper automatically returns when the brake lever is squeezed again.
The main body is precisely machined from aluminum and anodized. The texture of the machined aluminum beautifully enhances the handlebar area.

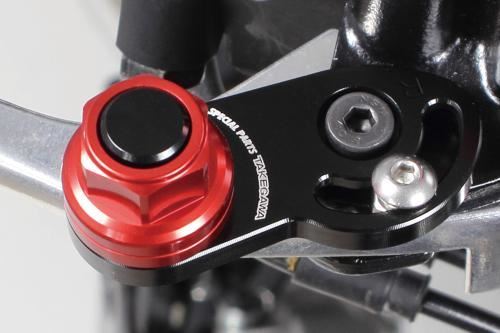

Laser engraved with the SP Takegawa logo.

【Installation Method】
To install, remove the "stock lever pivot bolt" and stock nut that secure the front brake master cylinder body and brake lever. Then, stack the included washer and parking brake body on top of the front brake master cylinder body, and secure them along with the brake lever using the included socket cap bolt and stock nut.
This product includes two types of anti-rotation pins, collars, and bolts of different dimensions, increasing its versatility for various front brake master cylinders.
Short collar/bolt: Applicable brake lever pivot length 17mm
Long collar/bolt: Applicable brake lever pivot length 22.5mm

【How to check the compatible dimensions of this product from the removed lever pivot bolt (including genuine parts)】

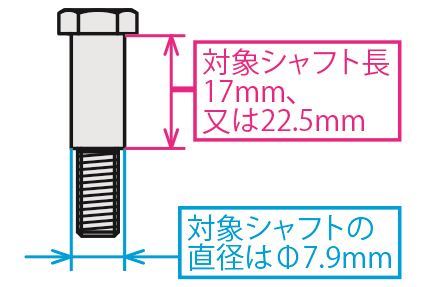

When removing the brake lever from the front brake master cylinder, measure the shaft length from the bottom of the bolt head to the threaded part of the lever pivot bolt (see diagram below) and the shaft thickness (diameter of the shaft in the diagram below) to confirm the dimensions.
If the shaft length is 17mm or 22.5mm and the shaft diameter is Φ7.9mm, this product can be installed.
The shaft length is from the bottom of the bolt head to the threaded part.
It is not the outer dimension (from top to bottom).
Please refer to the left diagram and confirm the dimensions.

【About SP Takegawa Installation Confirmed Vehicles】
SP Takegawa installation confirmed vehicles are genuine vehicles for which SP Takegawa mechanics have confirmed installation.
Simultaneous installation with SP Takegawa knuckle guards (limited to applicable vehicles) has also been confirmed.

■Compatible Models
Universal
For front brake master cylinder
(Brake lever pivot length: compatible with mounting widths 17mm/22.5mm)

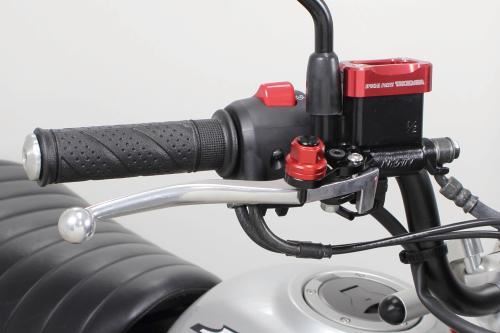

Compatible with SP Takegawa front brake master cylinder
(06-08-1169)
SP Takegawa installation confirmed vehicles
ADV160(KF54)
ADV150(KF38)
PCX HYBRID(JF84)
PCX(JF28)(JF56)(JF81)(JK05)
PCX150(KF12)(KF18)(KF30)
PCX160(KF47)
GROM(JC61)(JC75)(JC92)
DAX125(JB04)(JB06)
MSX/MSX125SF/MSX GROM(MLHJC92)
MONKEY125(JB02)(JB03)(JB05) including Thai models
DREAM50(AC15)
MAGNA50(AC13)
REBEL250(MC49)
CL250(MC57)
CL500(PC68)
CT125(JA55)(JA65)
SUPER CUB C125(JA48)(JA58)(JA71)
SUPER CUB 110(JA59)
SUPER CUB 110 PRO(JA61)
CROSS CUB 110(JA60)
GB350/GB350S(NC59)
GB350C(NC64)
KSR110(KL110A-000001～)
KSR110PRO(KL110EEF)(JKAKL110EEDA88121～)
Z125PRO(BR125H)
D-TRACKER125(LX125D-A00001～)
PG-1(23’Model)
XTZ125(LYOJ)
GN125-2F
NMAX/NMAX ABS
(2DS2/BV35/BV3A/BV3E/BV3G/BAL2/BAL6/BALC/BALK/BUG1)
NMAX155/NMAX155 ABS
(BV43/BV48/BV4B/BV4F/BBD6/BBDH/D892)

■Specifications
Color: Red

■Notes
※This product is an auxiliary part for parking. It does not guarantee secure vehicle fixation on rough terrain or slopes. Please be aware of this.
※Always use the parking brake after confirming that the engine is off.
※There are specific front brake master cylinders for which this product is intended. Please check the specified dimensions of the brake lever mounting part shown in the diagram.
※If within the specified dimension range, it can be installed on various vehicles. However, for vehicles with fairings around the handlebars, the parking brake body may interfere and prevent installation. Please check your vehicle before purchasing.
※The stock nut will be reused. If the stock nut is damaged, please purchase a new one.
※Cannot be installed simultaneously with SP Takegawa aluminum billet levers.

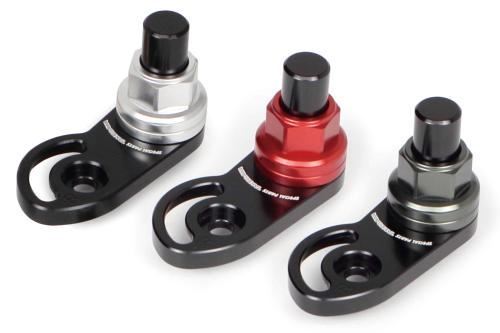

※The image is for illustration purposes only. It may include products with different sizes or colors.
※Product design and specifications are subject to change without notice. Thank you for your understanding.
