Parking Brake (Quick Release) Gunmetal

【Takegawa 06-08-0272 Parking Brake (Quick Release) Gunmetal Universal Motorcycle Custom TAKEGAWA】
■Product Description
A "parking brake" that can fix the brake lever by attaching it to the front brake master cylinder.
A convenient item that allows you to fix the brake lever in the braking position!
The stopper can be easily released by squeezing the brake lever again.
It is also useful for securing a motorcycle when loading it into a vehicle.
Prevents the vehicle from shifting when parked on rough roads or uneven ground.
Made of machined aluminum with an anodized finish for a dress-up effect.
Easy installation by simply removing the genuine lever pivot bolt and installing this product!

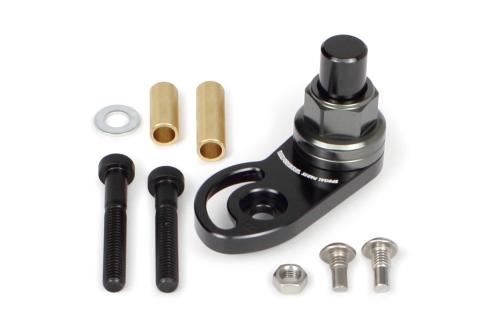

To increase versatility, two different lengths of collars, bolts, etc., are included.

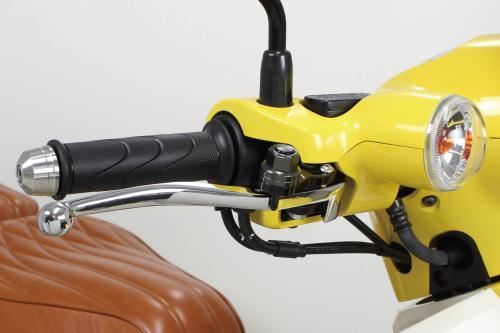

By installing this product on the front brake master, the lever can be fixed in the braking position. This prevents the vehicle from moving forward or backward after parking.
Also, even when loading a motorcycle onto a vehicle, the vehicle position can be fixed, so it can be used to prevent shifting when securing the vehicle with tie-downs.

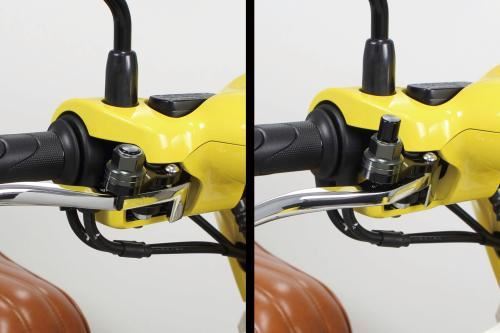

Since the parking brake is a quick-release type, after fixing the brake, the stopper automatically returns by squeezing the brake lever again.

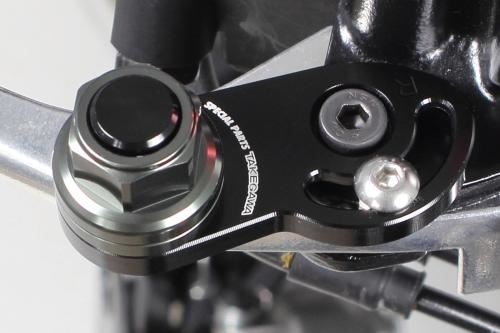

The main body is precisely machined from aluminum and anodized. The texture of the machined aluminum beautifully enhances the handlebar area.
Laser-engraved with the SP Takegawa logo.

【Installation Method】
To install, remove the "genuine lever pivot bolt" and genuine nut that secure the front brake master cylinder body and the brake lever. Then, stack the included washer and parking brake body on top of the front brake master cylinder body, and secure them along with the brake lever using the included socket cap bolt and genuine nut.
This product includes two different sizes of anti-rotation pins, collars, and bolts to increase its versatility with various front brake master cylinders.
Short collar/bolt: Compatible brake lever pivot length 17mm
Long collar/bolt: Compatible brake lever pivot length 22.5mm

【How to check the compatible dimensions of this product from the removed lever pivot bolt (including genuine parts)】

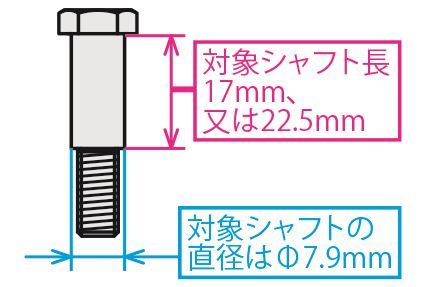

Measure the shaft length (from the bottom of the bolt head to the threaded part, as shown in the diagram) and the shaft thickness (diameter of the shaft in the diagram) of the lever pivot bolt that is removed when detaching the brake lever from the front brake master cylinder, and check the dimensions.
If the shaft length is 17mm or 22.5mm, and the shaft diameter is Φ7.9mm, this product can be installed.
The shaft length is from the bottom of the bolt head to the threaded part.
It is not the outer dimension (from top to bottom).
Please check the diagram on the left to confirm the dimensions.

【About SP Takegawa Installation Confirmed Vehicles】
SP Takegawa installation confirmed vehicles are genuine vehicles that have been confirmed for installation by SP Takegawa mechanics.
Simultaneous installation with SP Takegawa knuckle guards (limited to applicable vehicles) has also been confirmed.

■Compatible Models
Universal
For front brake master cylinder
(Brake lever pivot length: Compatible with 17mm/22.5mm mounting width)

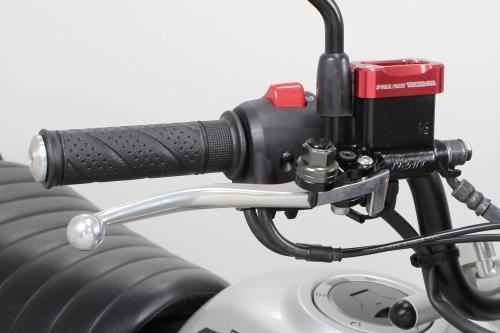

Compatible with SP Takegawa front brake master cylinder
(06-08-1169)
SP Takegawa installation confirmed vehicles
ADV160 (KF54)
ADV150 (KF38)
PCX HYBRID (JF84)
PCX (JF28) (JF56) (JF81) (JK05)
PCX150 (KF12) (KF18) (KF30)
PCX160 (KF47)
GROM (JC61) (JC75) (JC92)
Dax 125 (JB04) (JB06)
MSX/MSX125SF/MSX GROM (MLHJC92)
Monkey 125 (JB02) (JB03) (JB05) including Thai models
DREAM50 (AC15)
Magna 50 (AC13)
Rebel 250 (MC49)
CL250 (MC57)
CL500 (PC68)
CT125 (JA55) (JA65)
Super Cub C125 (JA48) (JA58) (JA71)
Super Cub 110 (JA59)
Super Cub 110 PRO (JA61)
Cross Cub 110 (JA60)
GB350/GB350S (NC59)
GB350C (NC64)
KSR110 (KL110A-000001～)
KSR110 PRO (KL110EEF) (JKAKL110EEDA88121～)
Z125PRO (BR125H)
D-TRACKER125 (LX125D-A00001～)
PG-1 (23’ model)
XTZ125 (LYOJ)
GN125-2F
NMAX/NMAX ABS
(2DS2/BV35/BV3A/BV3E/BV3G/BAL2/BAL6/BALC/BALK/BUG1)
NMAX155/NMAX155 ABS
(BV43/BV48/BV4B/BV4F/BBD6/BBDH/D892)

■Specifications
Color: Gunmetal

■Notes
※This product is an auxiliary part for parking. It does not guarantee secure vehicle fixation when parking on rough roads or slopes. Please be aware.
※Always use the parking brake after confirming that the engine is stopped.
※There are specific front brake master cylinders for which this product is intended. Please check the specified dimensions of the brake lever mounting part as described in the diagram.
※If within the specified dimensions, it can be installed on various vehicles. However, for vehicles with a cowl around the handlebars, the parking brake body may interfere and prevent installation. Please check your vehicle before purchasing.
※The genuine nut will be reused. If the genuine nut is damaged, please purchase a new one.
※Simultaneous installation with SP Takegawa aluminum billet levers is not possible.

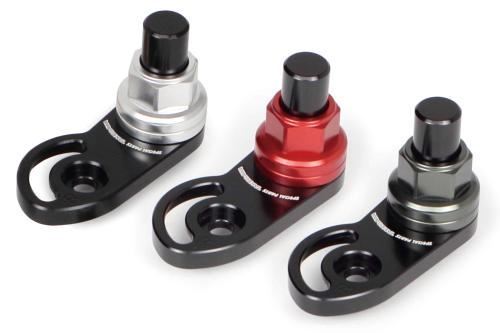

※The image is for illustration purposes only. It includes products of different sizes and colors.
※Product design and specifications are subject to change without notice. Thank you for your understanding.
