Adjustable Side Stand for PCX/PCX160

【SP Takegawa 06-13-0115 Adjustable Side Stand PCX/PCX160 Adjustable Length Takegawa】
■Product Description

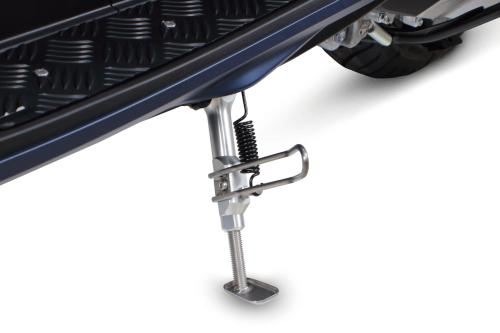

An adjustable side stand compatible with a wide range of custom vehicles, including those with low-profile tires or lowered suspensions.

■Detailed Description

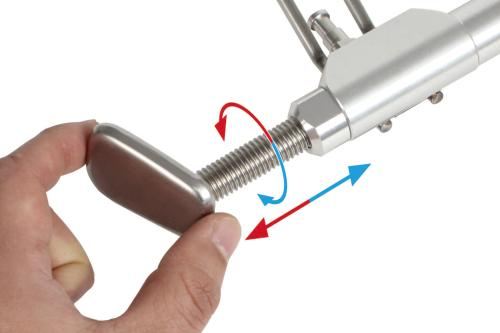

This product allows for fine adjustments by rotating the stand bolt, enabling you to set your preferred side stand length to match your unique custom vehicle.

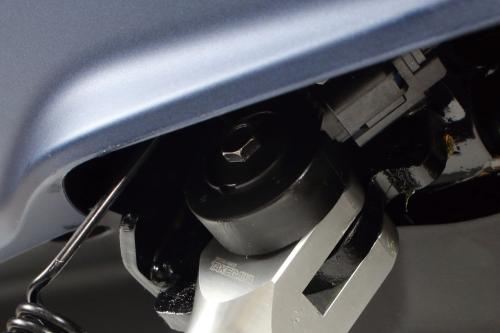

In addition, the normal side stand switch can be installed, so the function to prevent forgetting to return the side stand can be used as is.
The stand body and fixing nuts are machined from aluminum, while the spring hook, pivot bolt, and stand bolt are made of stainless steel.
By using aluminum and stainless steel, corrosion caused by rust, which occurs with normal stands, is prevented.
The aluminum material is treated with silver anodizing for excellent corrosion resistance, and the stand body features a laser-marked logo.
The product configuration includes a black tube cover. Installing the tube cover prevents dirt from accumulating on the stud bolt and enhances the vehicle's appearance.
●Installation
Adjustable side stand adjustment range: Approx. 55mm (minimum length 160mm, maximum length 215mm) (normal stand length: 190mm)
*If extending beyond the normal stand position (approx. 190mm) for both PCX and PCX160, it will interfere with the cowl.
The normal return spring is reused.
Simultaneous installation of SP Takegawa low-down rear shock absorbers (06-04-0123/06-04-0124) is possible.

■Compatible Models
HONDA
PCX (JK05-1200001～)
PCX160 (KF47-1200001～)
*Cannot be installed on PCX (JK05-1000001～1199999) / PCX160 (KF47-1000001～1199999).

■Notes
*Images are for illustration purposes only. Includes products of different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
