Oil Catch Tank (Cylinder Type) (Special/Dry)

【Takegawa 07-05-0045 Oil Catch Tank (Cylinder Type) (Special/Dry Clutch) Monkey Gorilla Motorcycle Aluminum TAKEGAWA】
■Product Description

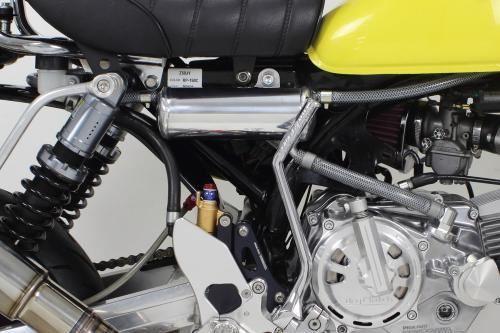

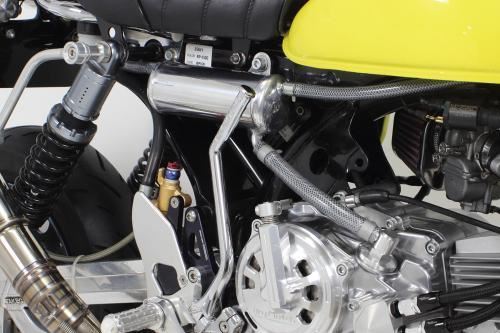

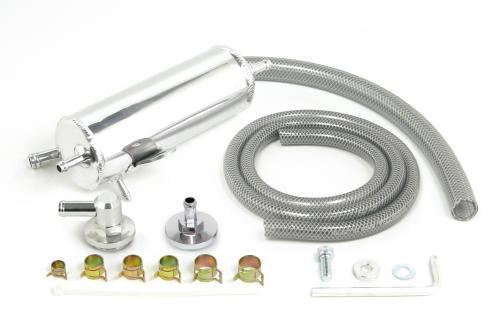

Structure of the aluminum catch tank (buffed finish).
Engine internal pressure can be input to the catch tank from the cylinder head and crankcase, and output can be returned to the clutch cover, to a storage tank, or vented to the atmosphere.
In addition, a separator is built into the catch tank to suppress oil input simultaneously with internal pressure, and return oil to the clutch cover.
A clear black hose with excellent flexibility is used, allowing the fluid inside the hose to be seen and enhancing the presence of the catch tank.

・Regarding Tappet Breather Cap Installation
If a normal/R-Stage cylinder head tappet breather cap is installed, it cannot be used simultaneously with SP Takegawa oil cooler kits.
To use it simultaneously with an SP Takegawa oil cooler kit, the oil cooler body must be a 3-fin type, and you will also need to purchase an optional tappet breather cap (swivel type) separately.
Breather Cap (Swivel Type) Separately 07-06-0002.
Capacity is 420cc.
Breather union included.

Applicable Cylinder Heads:
Normal Head
SP Takegawa Regular/R-Stage/R-Stage EM/R-Stage +D

Applicable Clutches:
SP Takegawa Special Clutch/Dry Clutch

■Compatible Models
Monkey/Gorilla (Z50J-1300017~)
Monkey/Gorilla (AB27-1000001~1899999)

■Precautions
*Cannot be used simultaneously with a tappet breather cap and an oil cooler (4-fin type).
*Cannot be installed on Monkey BAJA.
*Cannot be used simultaneously with a normal muffler or an up-type muffler.
*For Monkey/Gorilla (AB27-1000001~) and Monkey (injection models), which are compliant with the 1998 emission regulations, do not vent to the atmosphere. Exhaust gases should be returned to the air cleaner.
*Images are for illustration purposes only. Products may include different sizes and colors.
*Product design and specifications may change without notice. Please be aware.
