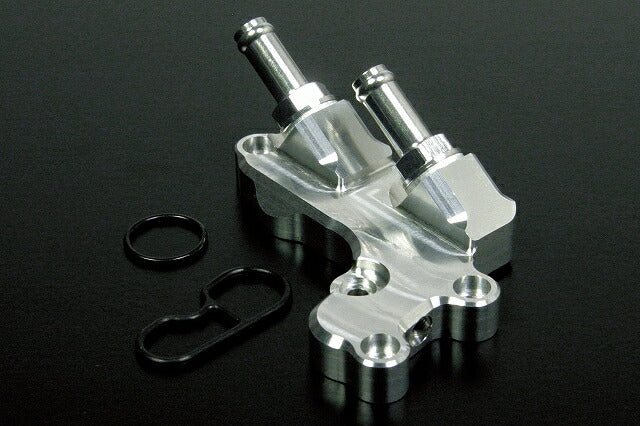

Oil Cooler Unit (for Rubber Hoses) Monkey (Super Head 4V+R Equipped Vehicles)

Head Side Take-Out Port: This oil cooler unit provides an oil passage from the right side of each cylinder head when installing an oil cooler.
It is machined from aluminum and has a silver anodized finish for excellent corrosion resistance.
*The inner diameter of the mounting hose is 8mm.
*The fitting adapter installed on old types (09-07-051 and 09-07-050 includes 09-07-003) cannot be attached.
*With the take-out port installed, the oil flow is return at the top and discharge at the bottom.
*There are φ20 and φ29 depending on the type of head, vehicle model, and frame number.
Please be careful when purchasing.
Compatible Cylinder Head / Super Head 4V+R
Compatible Models
: 6V (2.6ps) Monkey / Gorilla (Z50J-1300017～1510400)
: 6V (3.1ps) Monkey / Gorilla (Z50J-1600008～)
: 12V (3.1ps) Monkey / Gorilla (Z50J-2000001～ / AB27-1000001～1899999)
: Monkey R / RT / BAJA
*Images are for illustration purposes only, and the design and specifications of the products listed may change without prior notice. Please understand.
