Compact Cool AW Kit (4-fin/slim line hose)

【武川 07-07-0265 Compact Cool AW Kit (4 Fin/Slimline Hose) for Ape50, Ape100, XR50 Motard, XR100 Motard with Special Clutch Cover TAKEGAWA】
■ Product Description
This oil cooler kit can be installed when equipped with an SP Takegawa special clutch cover.
Features slimline hoses.

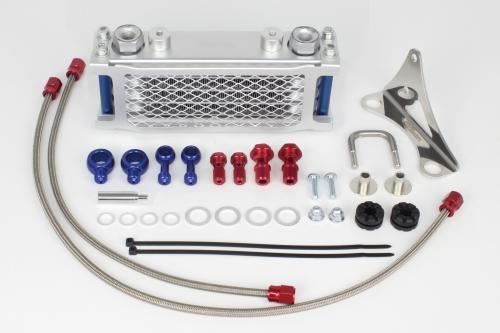

・Compact Cool AW (4 fin 5 oil line)
A compactly designed oil cooler that comes standard with an oil cooler plate and oil cooler guard.

・Oil Extraction Method
Oil can be extracted by installing an SP Takegawa special clutch cover equipped with an oil extraction port as standard.

The oil cooler kit for the special clutch cover includes an oil hole plug. When installing the oil cooler, be sure to install the oil hole plug or the thermo unit.
Oil will not circulate if nothing is installed.

■ Compatible Models
Ape50 (AC16-1000001~)
Ape50 (FI) (AC16-1600001~/AC18-1000001~)
Ape100 (HC07-1000001~/HC13-1000001~)
XR50 Motard (AD14-1000001~)
XR100 Motard (HD13-1000001~)
* For vehicles equipped with SP Takegawa special clutch cover

■ Notes
* This kit is exclusively for vehicles equipped with an SP Takegawa special clutch cover.
* Cannot be installed on stock cylinders/stock clutch covers.
* When adding oil, please add 60cc to the specified oil quantity.
* The image is for illustration purposes only. It includes products with different sizes and colors.
* Product design and specifications may change without prior notice. Thank you for your understanding.
